T2000
Low-Frequency Conducted Susceptibility Transformer
T2000
Two-to-One Step-Down, Up to 200W Audio Power
- For testing to DO 160 Section 16 and 18 standard
- Optimized for use with AE Techron 7220 Series amplifiers
- Protected from over-current by a thermal breaker on the primary and a 35 ARMS breaker on the secondary
- Durable steel and high-density polyethylene case for impact resistance
Key Performance Capabilities:
- Frequency response: 10 Hz to 250 kHz
- Up to 200W audio power
- Up to 40 Ap AC or DC secondary current
- Two-to-one step-down
- Output via feed-through terminal block connectors (76A); accepts up to AWG 6 wire
OVERVIEW
The T2000 Audio-Bandwidth Conducted Susceptibility Transformer was designed to meet or exceed the LF conducted susceptibility test requirements of DO 160 Section 18. The T2000 is used to apply the required test signals to the lines under test for ripple voltage tests and continuous or transient conducted immunity tests. It may also be used as a 2-to-1 step-down transformer. The secondary can support up to 40AP.
The T2000 transformer supports up to 200W and is able to pass up to 40AP on the secondary. The turns ratio provides a 2-to-1 step down.
The T2000 provides convenient input connectors via binding posts. Standard 0.75-inch spacing of binding posts allows use of standard plugs. Output is via Multi Contact 125A plugs.
A thermal breaker protects the unit against over-current conditions on the primary. A 35 ARMS breaker protects the unit against over-current conditions on the secondary. A rugged, impact-resistant case and robust design protects the transformer from accidental damage.
The T2000 transformer is for use by experienced staff.
PERFORMANCE
T2000 Maximum SOA (Safe Operating Area)
SPECIFICATIONS
Technical
- Transformer DC Resistance:
- Primary: 0.076 ohms
- Secondary: 0.021 ohms
- Frequency Response: 10 Hz to 250 kHz
- Audio Power: 200W MAX
- Dielectric Test: 1500 VDC primary to secondary
- Turns Ratio: Two-to-one step down
- Secondary Inductance: Approximately 0.6 mH (unloaded)
- Protection: Input power-protected via thermal breaker; secondary winding protected via 35ARMS breaker
Controls and Connectors

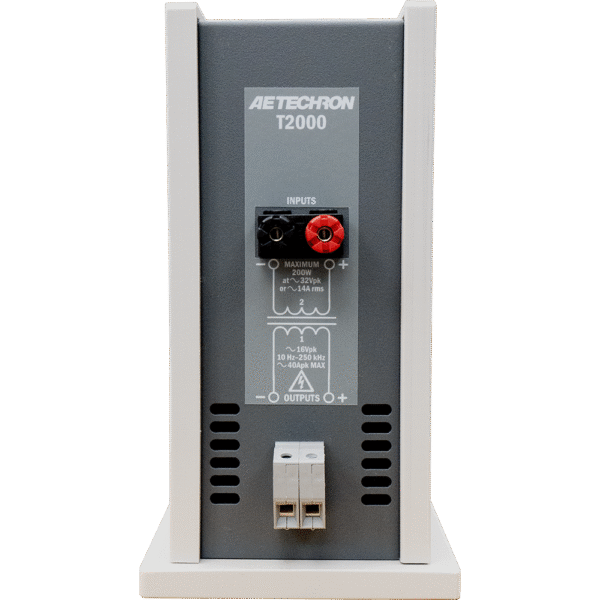

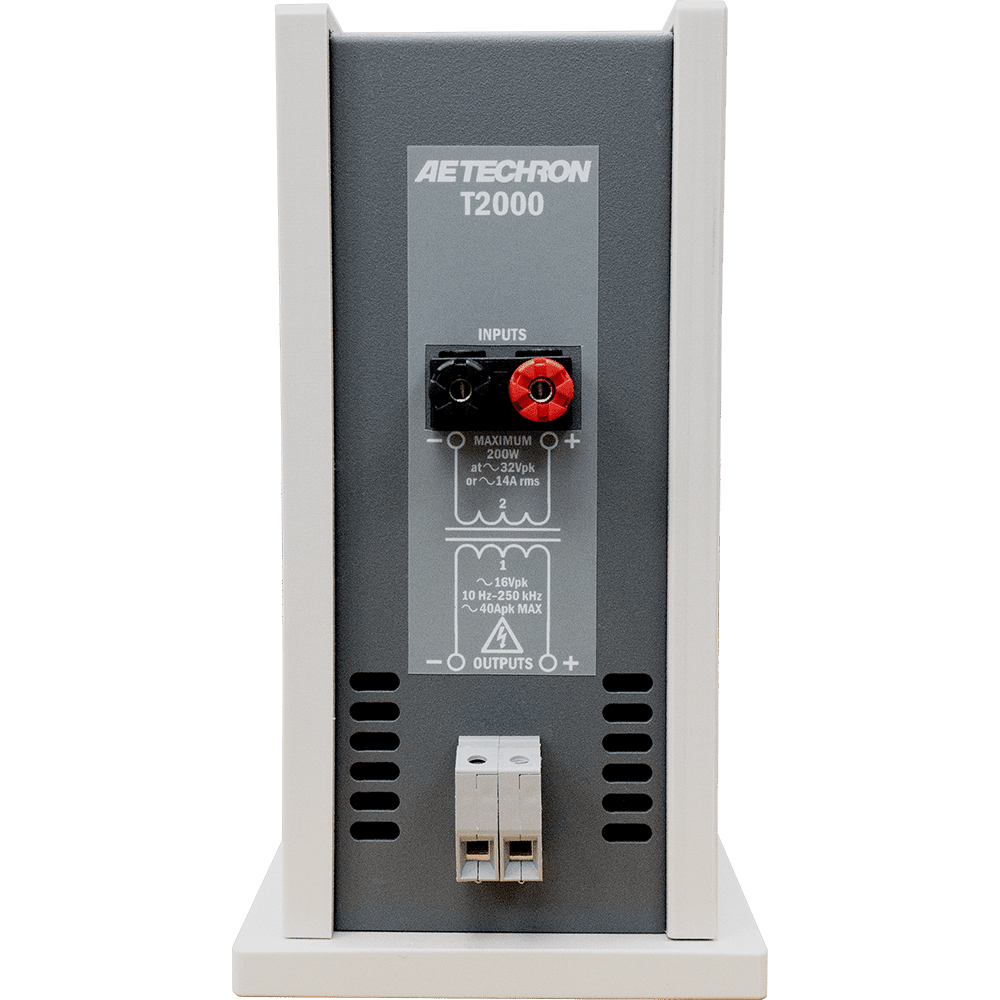

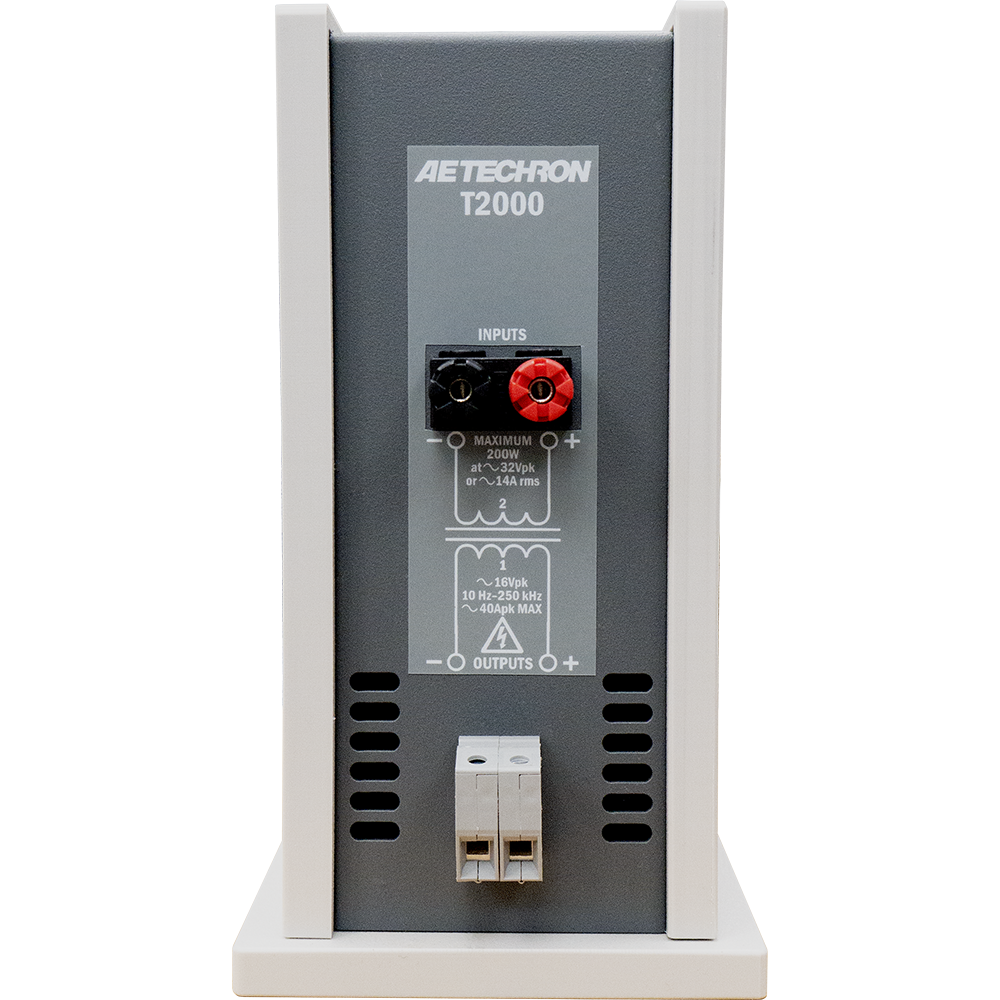

- Input Terminals: 4-way binding posts
- Output Terminals: feed-through terminal block connectors (76A); accepts up to AWG 6 wire

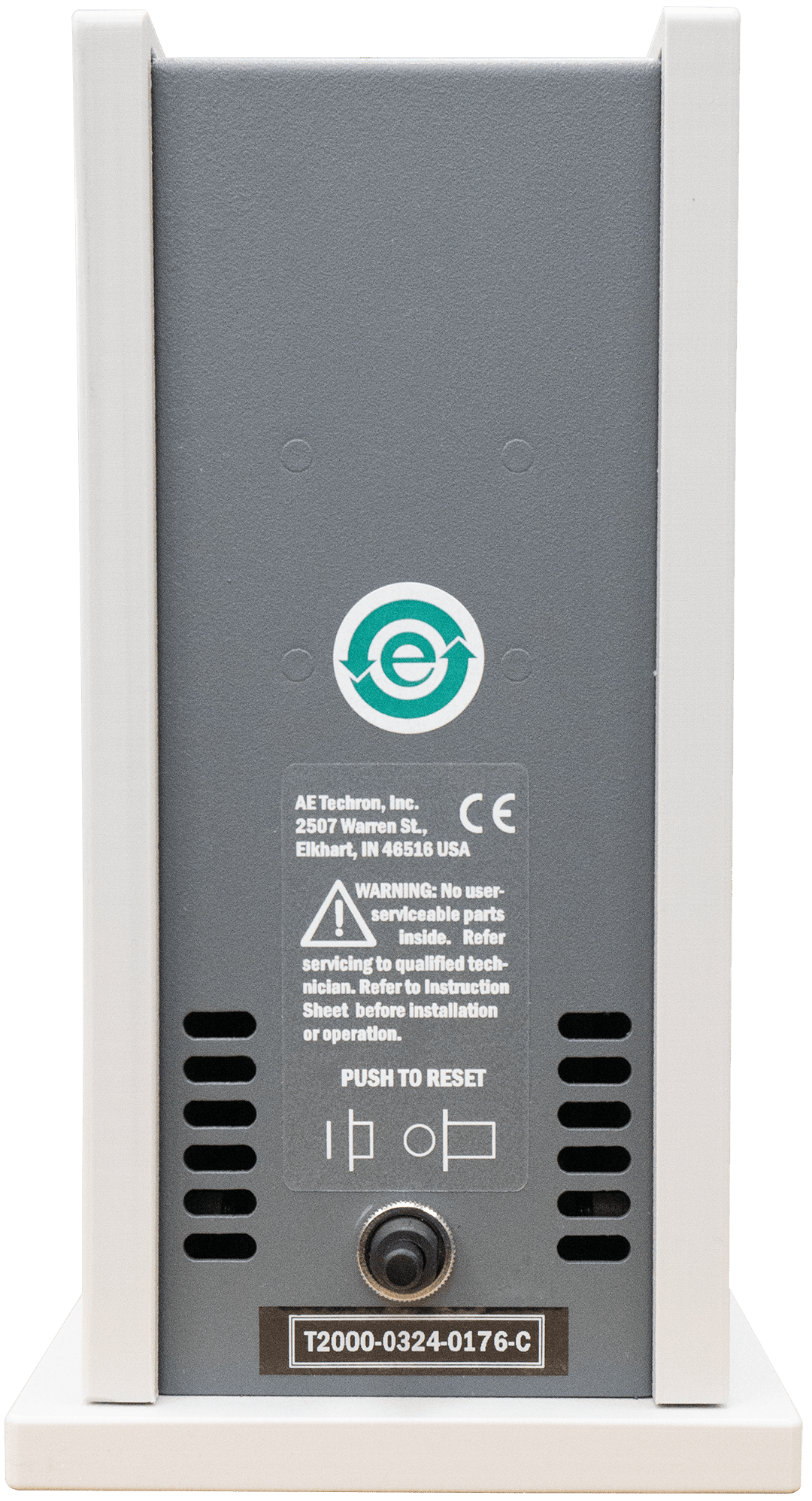

- Circuit Breaker: Secondary winding limited to 35 ARMS via circuit breaker; push to reset
Physical Characteristics

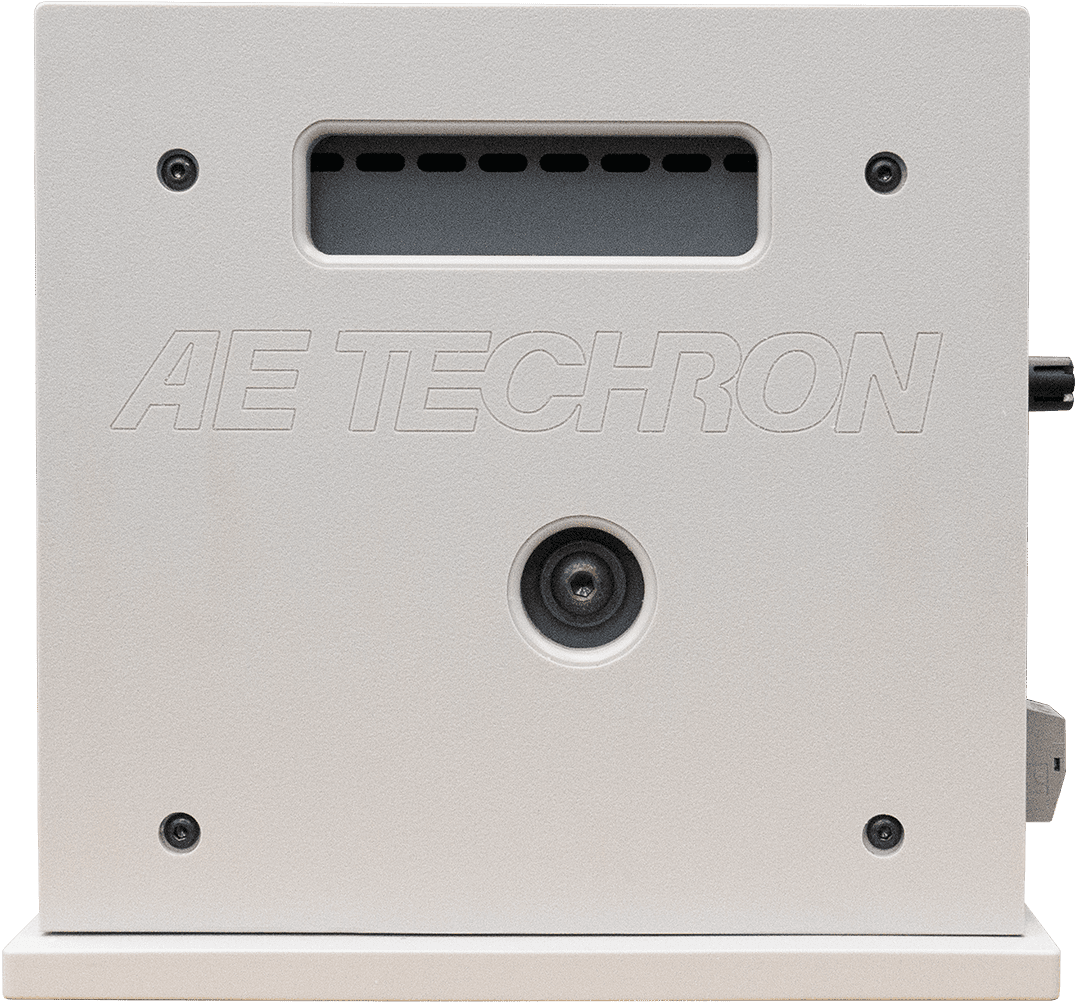

- Case: Steel interior shell with a durable external shell made from high-density polyethylene for impact resistance.
- Operating Conditions,
- Temperature: 10°C to 40°C (50°F to 104°F)
- Humidity: 70% or less, non-condensing
- Recommended Ambient Temperature: 27°C (77°F)
- Cooling: Natural air convection
- Weight: 15 lbs. (6.8 kg)
- Dimensions (WxDxH): 5.25 in. x 10.375 in. x 9.75 in. (13.3 cm x 26.4 cm x 24.8 cm)
PHOTOS

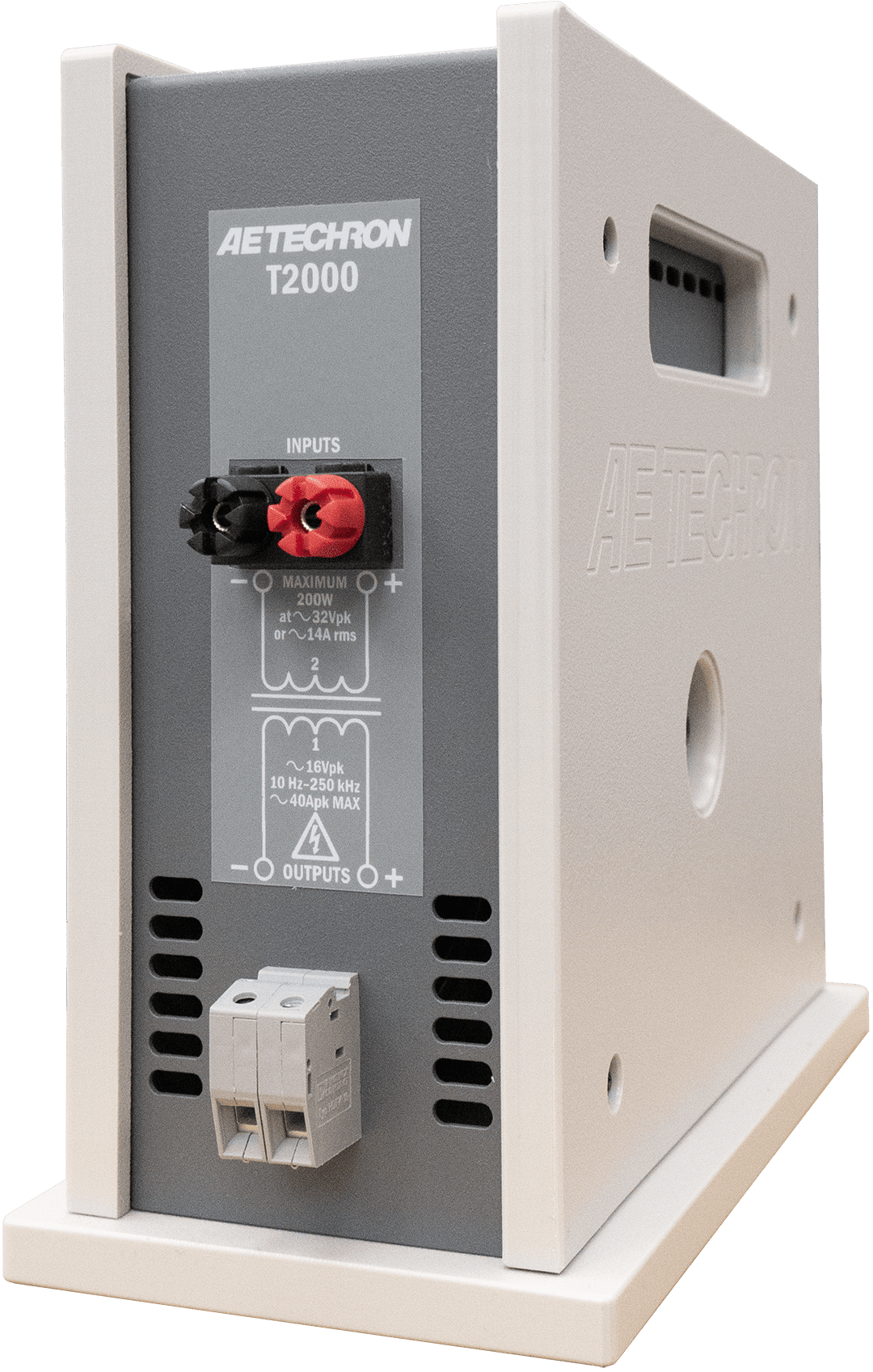

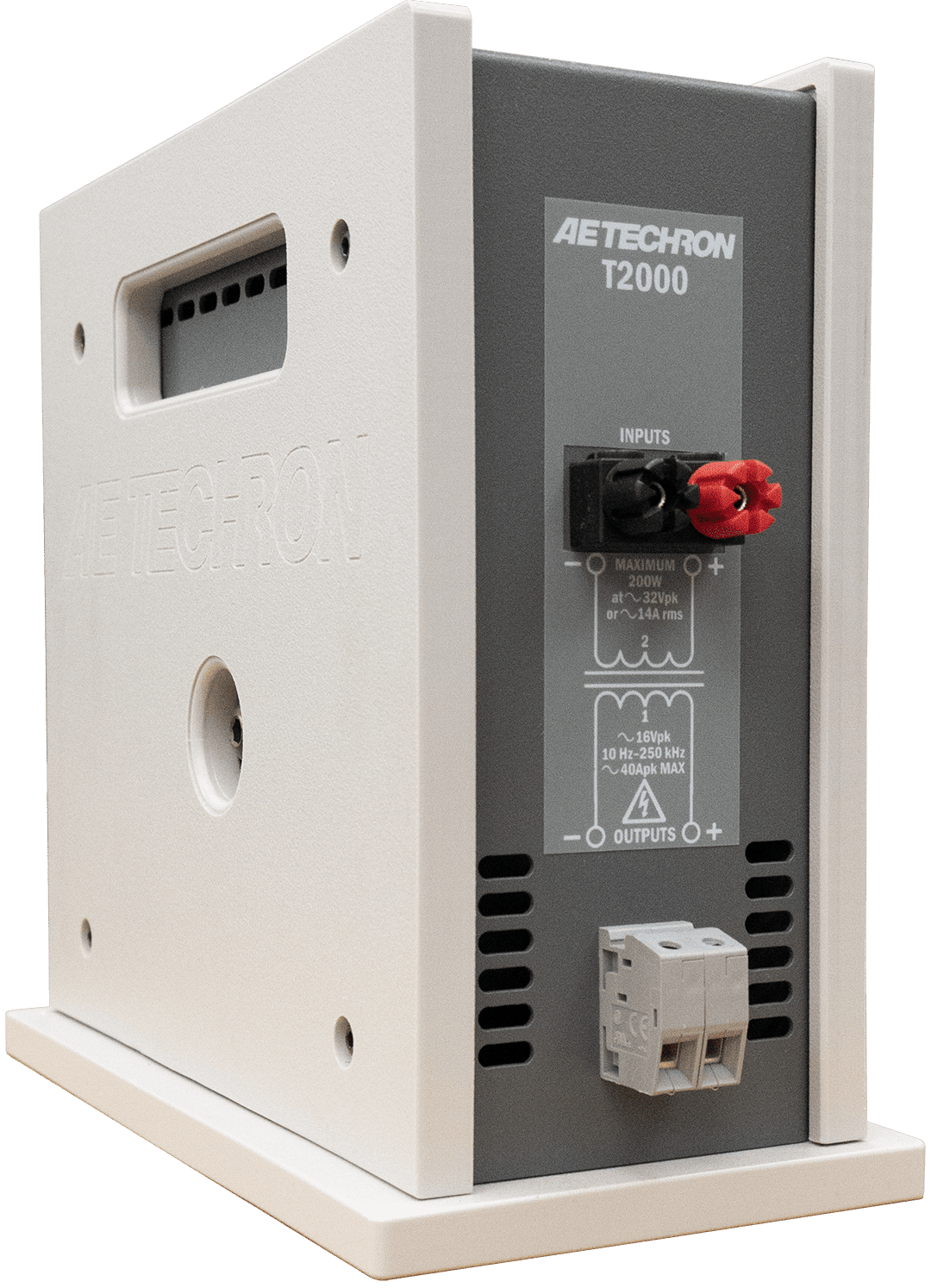

Controls, Indicators and Connectors
Application
DO 160 Section 18 Testing
STANDARDS
Meets or exceeds the performance requirements for testing to these specifications:
|
|
|
DOCUMENTS / DOWNLOADS
| T2000 Data Sheet | T2000 Instruction Sheet | T2000 Declaration of Conformity |
 |
 |
 |
