Electric Field Susceptibility Transformer
T3700
1-to-37 Step-Up, Up to 3700 VRMS
- For testing to DO 160 Section 19 and Boeing D6-16050-5 Section 7.2 standards
- Optimized for use with AE Techron 7220 Series amplifiers
- Current-protected input
- Durable steel and high-density polyethylene case for impact resistance
Key Performance Capabilities:
- Up to 3700VRMS
- Robust design: withstand tested to 5,000 VDC
- 1-to-37 step-up
- Frequency range: 250 Hz to 35 kHz
- Output via LGH high-voltage connector
OVERVIEW
The T3700 Electric-Field Susceptibility Transformer was designed to meet or exceed the voltage requirements of DO 160 Section 19 and Boeing D6-16050 Section 7.2 testing. It may also be used as a 1-to-37 step-up transformer for voltages up to 3700 VRMS.
The T3700 transformer is able to generate up to a 3700 VRMS potential. It is withstand tested to 135% of rated output to ensure a long, trouble-free life. The turns ratio provides a 1-to-37 step up to the secondary winding.
The T3700 provides convenient input connectors via touch-proof, four-way binding posts. Standard 0.75-inch spacing of binding posts allows use of standard plugs.
A 1-amp fuse protects the unit against over-current conditions. A rugged, impact-resistant case and robust design protects the transformer from accidental damage.
The T3700’s voltage output meets or exceeds the requirements of DO 160 Section 19 and Boeing D6-16050-5 Section 7.2. It is for use by experienced staff.
PERFORMANCE
T3700 Maximum SOA (Safe Operating Area)
T3700 Physical and Apparent Turns Ratios vs. Frequency
SPECIFICATIONS
Technical
- Primary:Â 100 VRMSÂ maximum or 1 ARMS, maximum
- Secondary:Â 3700 VRMS maximum output
- Physical Turns Ratio:Â 1-to-37 step up
- Dielectric Test,
- Primary to Case: 5 kVDC
- Secondary to Case: 5 kVDC
- Frequency Range:Â 250 Hz to 35 kHz
- Protection:Â Current-protected Input
Controls and Connectors
- Input Terminals:Â 4-way binding posts
- Output Terminals:Â LGH high-voltage connector (+); Banana jack (-)
- Over-Current Protection:Â Primary input limited via fuse to 1A (T1A H 250V)
- Grounding Lug:Â Screw terminal grounding connector. Connect to earth ground using appropriate wire and connector.
Physical Characteristics
- Case:Â Steel interior shell with a durable external shell made from high-density polyethylene for impact resistance.
- Operating Conditions,
- Temperature: 10°C to 40°C (50°F to 104°F)
- Humidity: 70% or less, non-condensing
- Recommended Ambient Temperature: 27°C (77°F)
- Cooling:Â Natural air convection
- Weight:Â 16 lbs. (7.3 kg)
- Dimensions (WxDxH):Â 5.25 in. x 10.375 in. x 9.75 in. (13.3 cm x 26.4 cm x 24.8 cm)
PHOTOS

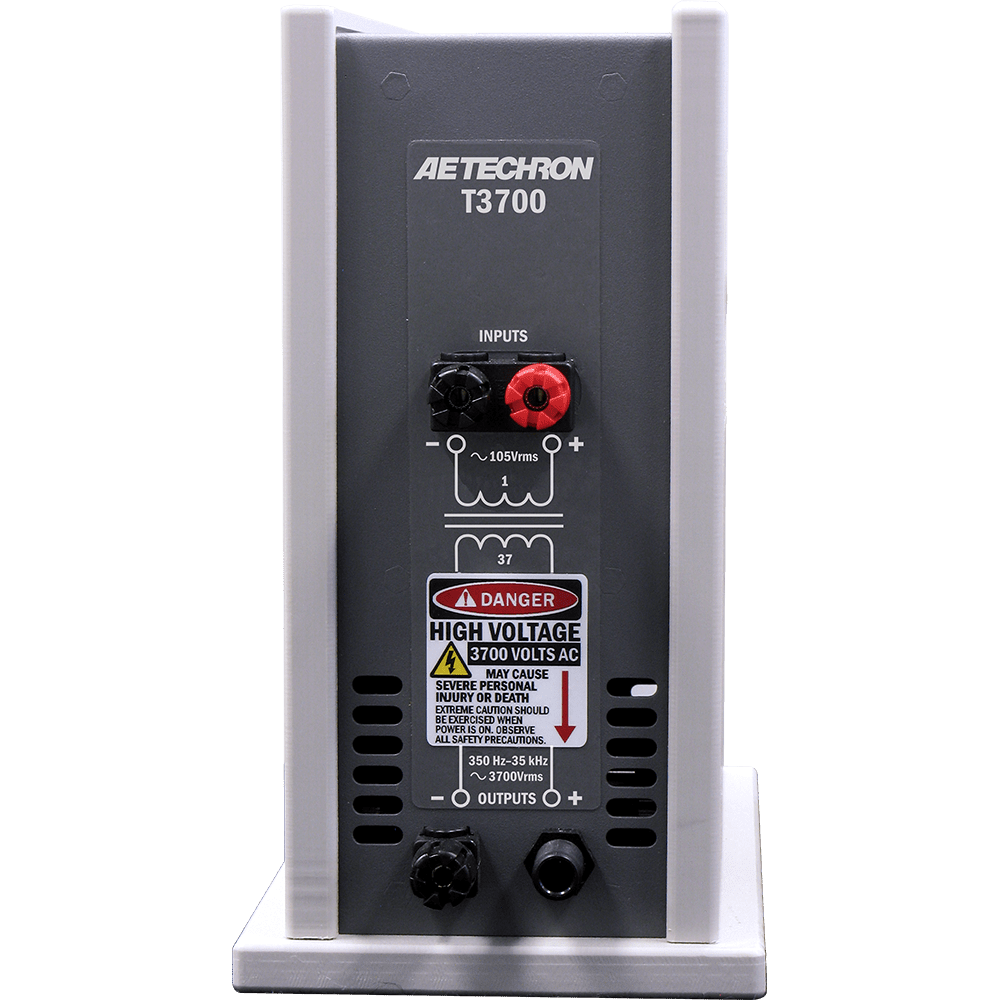

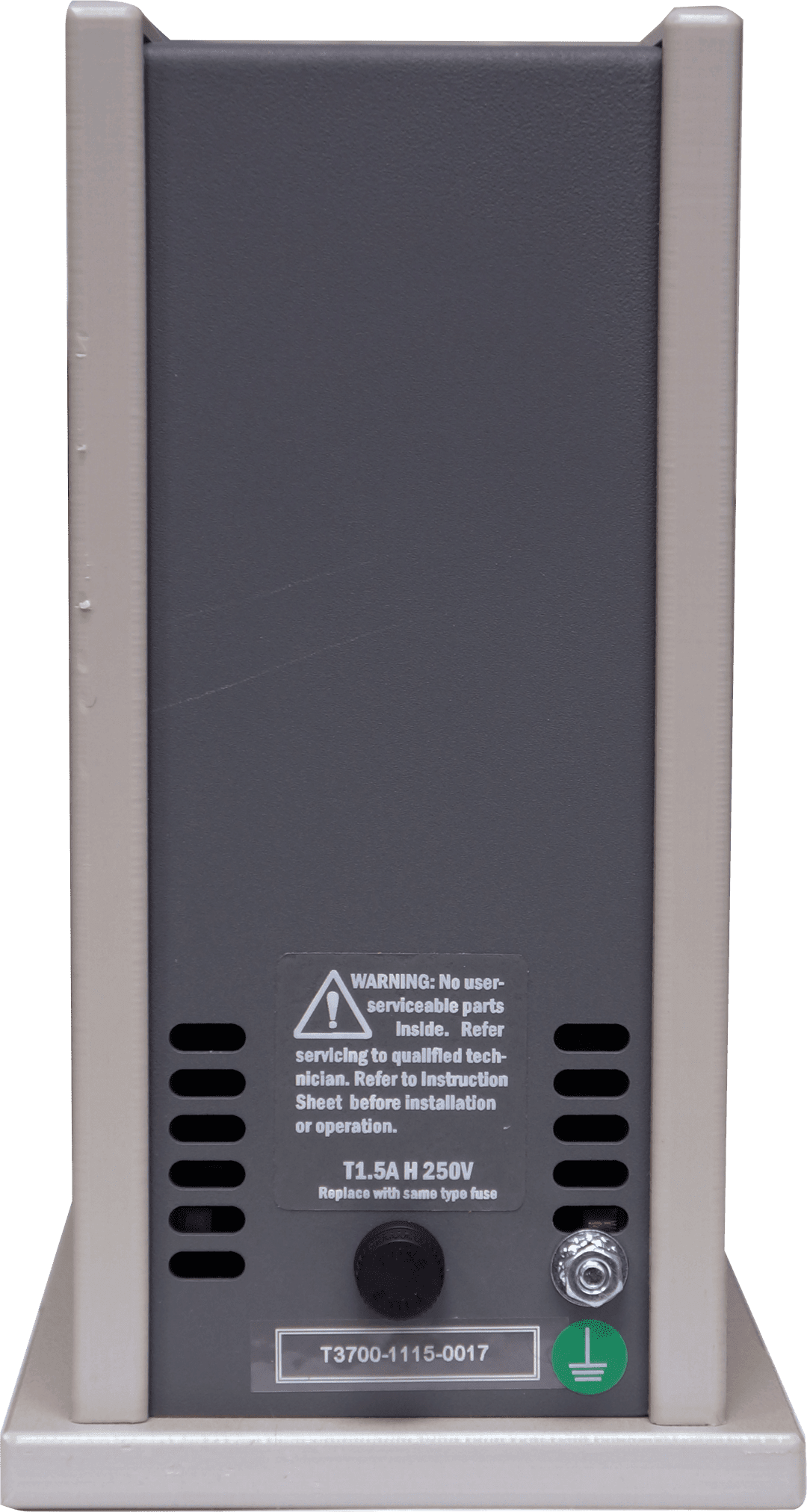

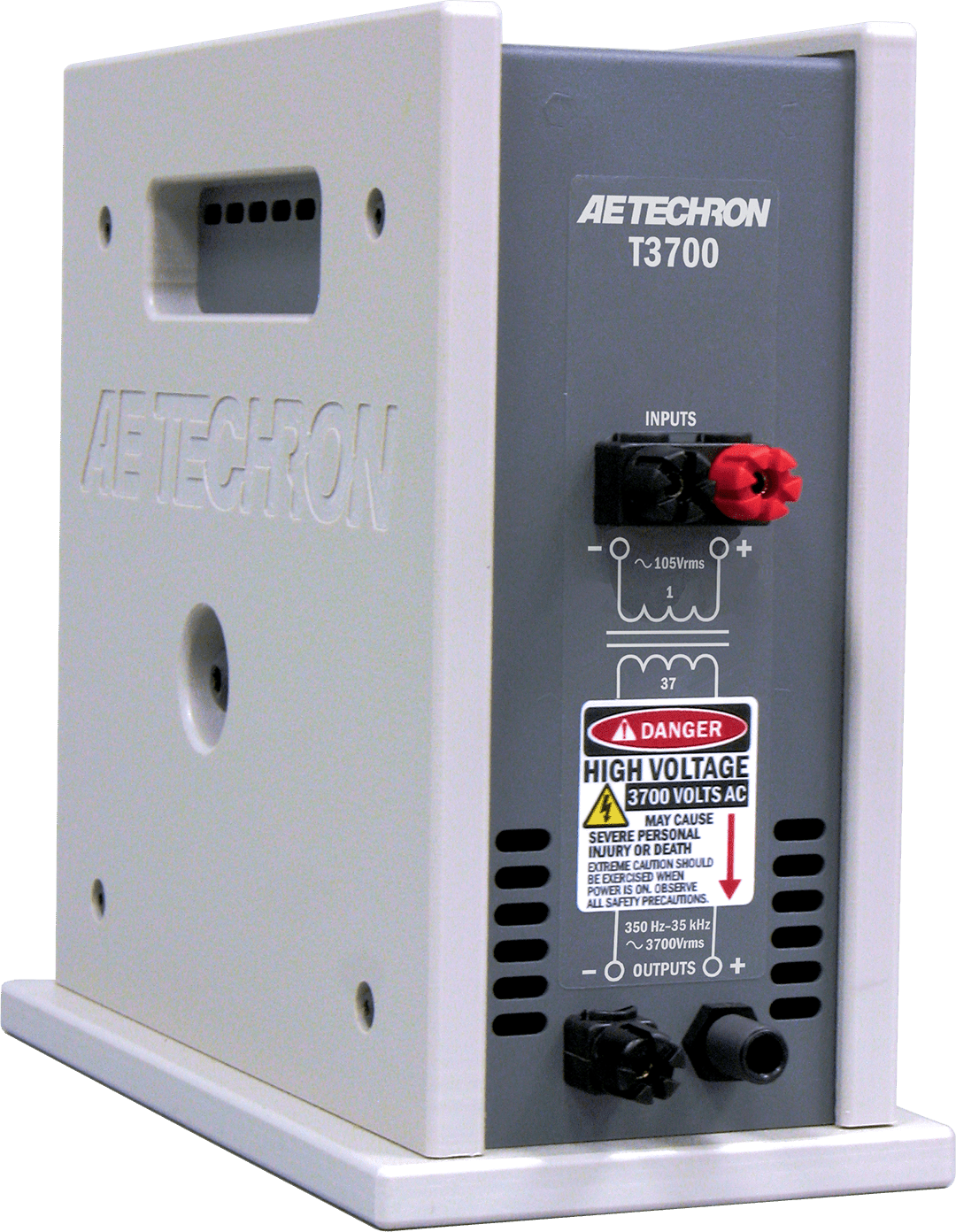

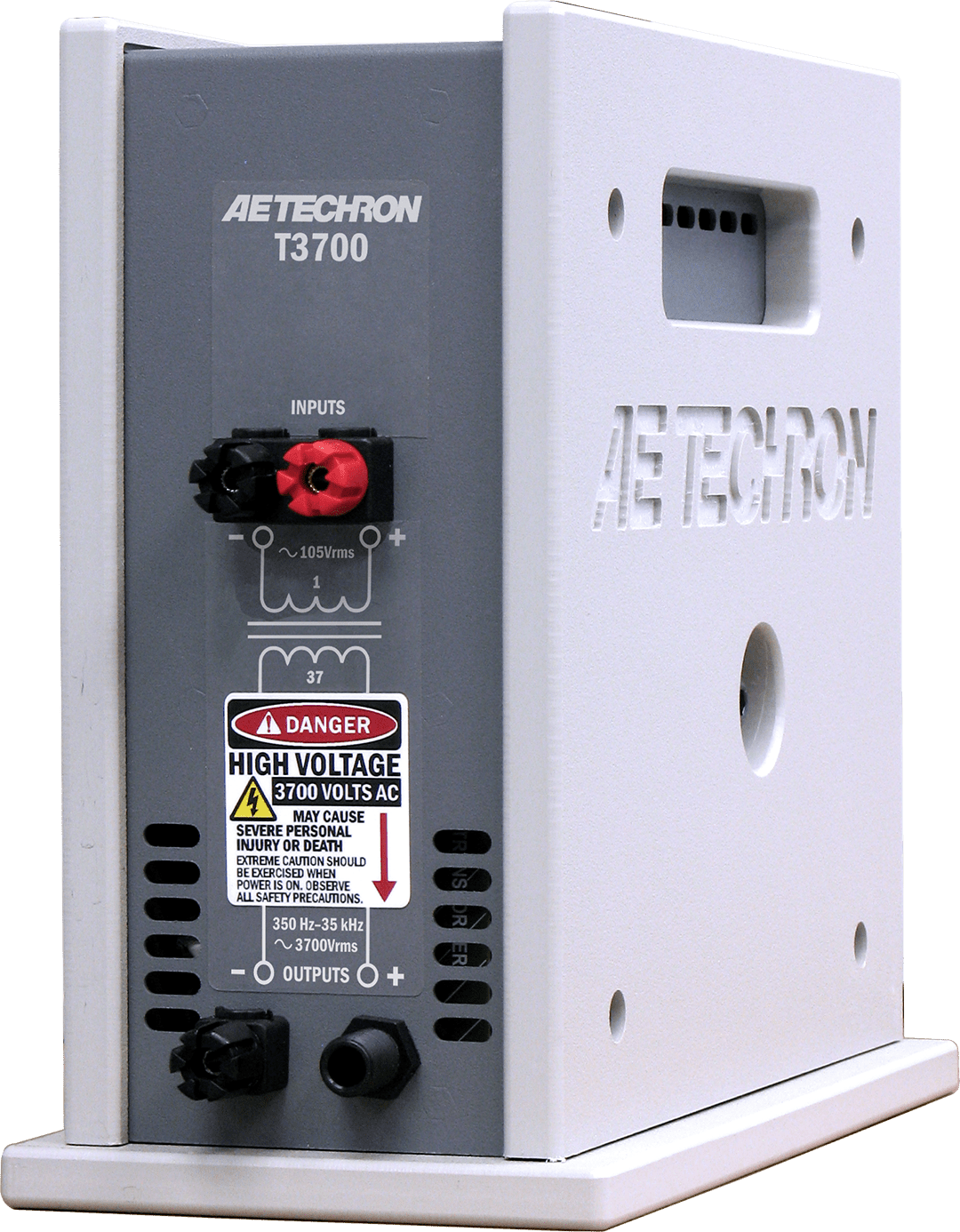

Controls, Indicators and Connectors
Application
Meets or exceeds the performance requirements for testing to these specifications:
- DO 160 Section 19
- Boeing D6-16050-5 Section 7.2
