Switch-Mode Amplifiers
High-Bandwidth | High-Power | Low Noise
8300 Series
DC – 50 kHz, 200 Vp Switch-Mode Amplifiers
- Bandwidth:Â DC to 50 kHz
- Voltage:Â 0 to 140 VRMS; 0 to 200 VDC
- Slew rate: Up to 60 V/µs
- Current:Â Up to 65 to 300 ARMS
- Distortion:Â <0.2%
- Power: 2 kW to 10 kW
- Available in 5 Models
8500 Series
DC – 50 kHz, 400 Vp Switch-Mode Amplifiers
- Bandwidth:Â DC to 50 kHz
- Voltage:Â 0 to 250 VRMS; 0 to 350 VDC
- Slew rate: Up to 80 V/µs
- Current:Â Up to 80 to 480 ARMS*
- Distortion:Â <0.2%
- Power:Â 4 kW to 24 kW*
- Available in 6 models

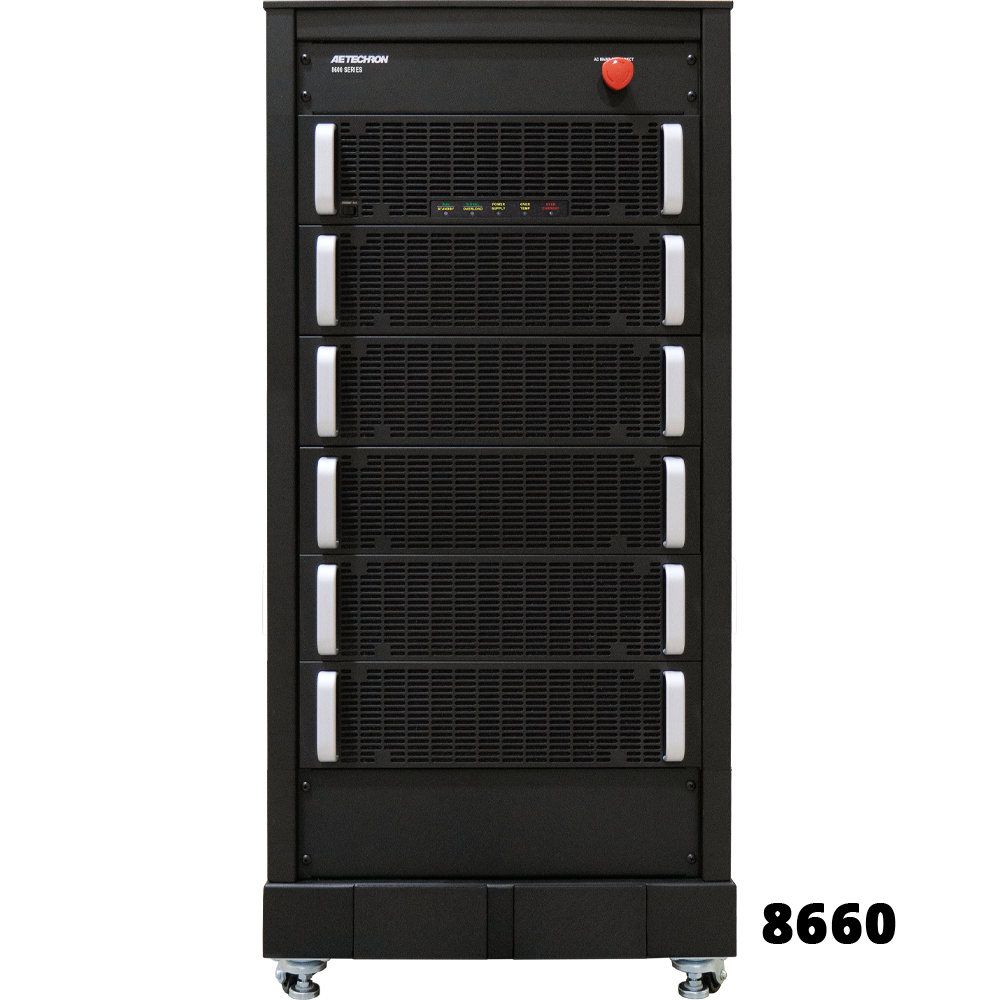

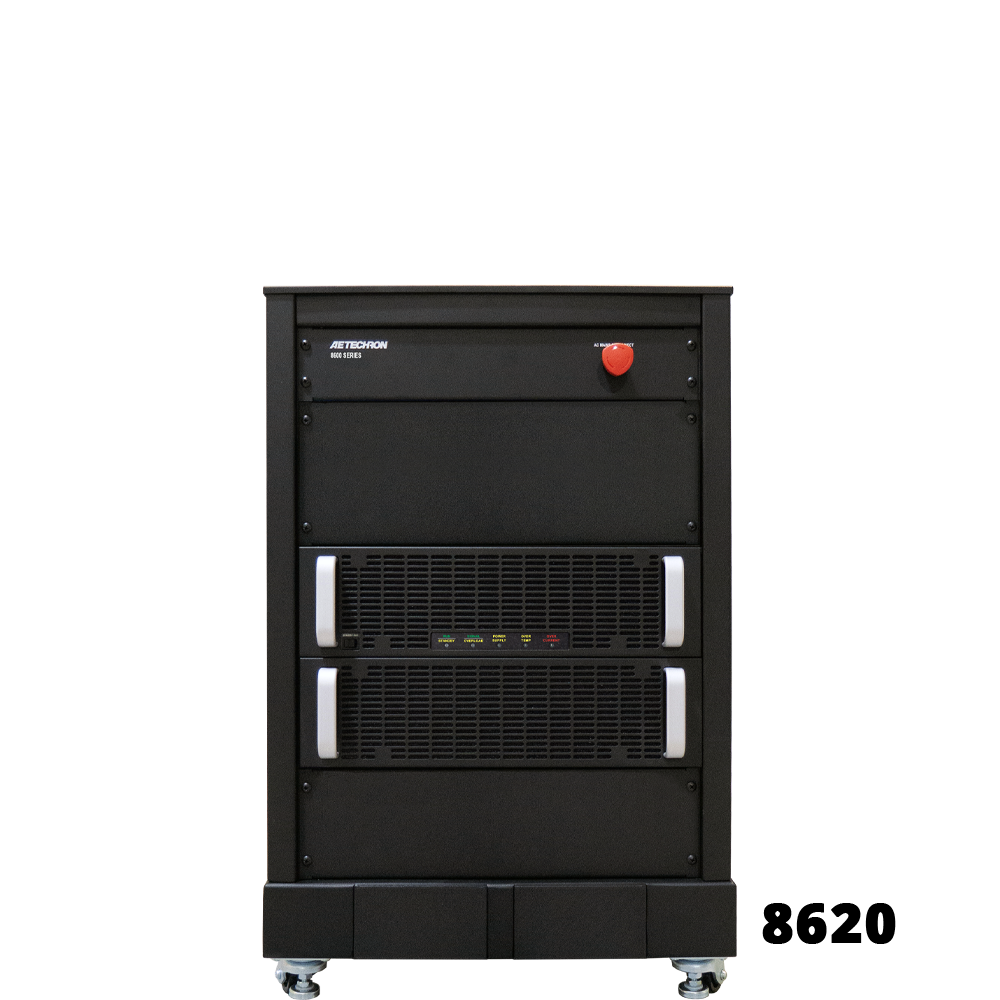

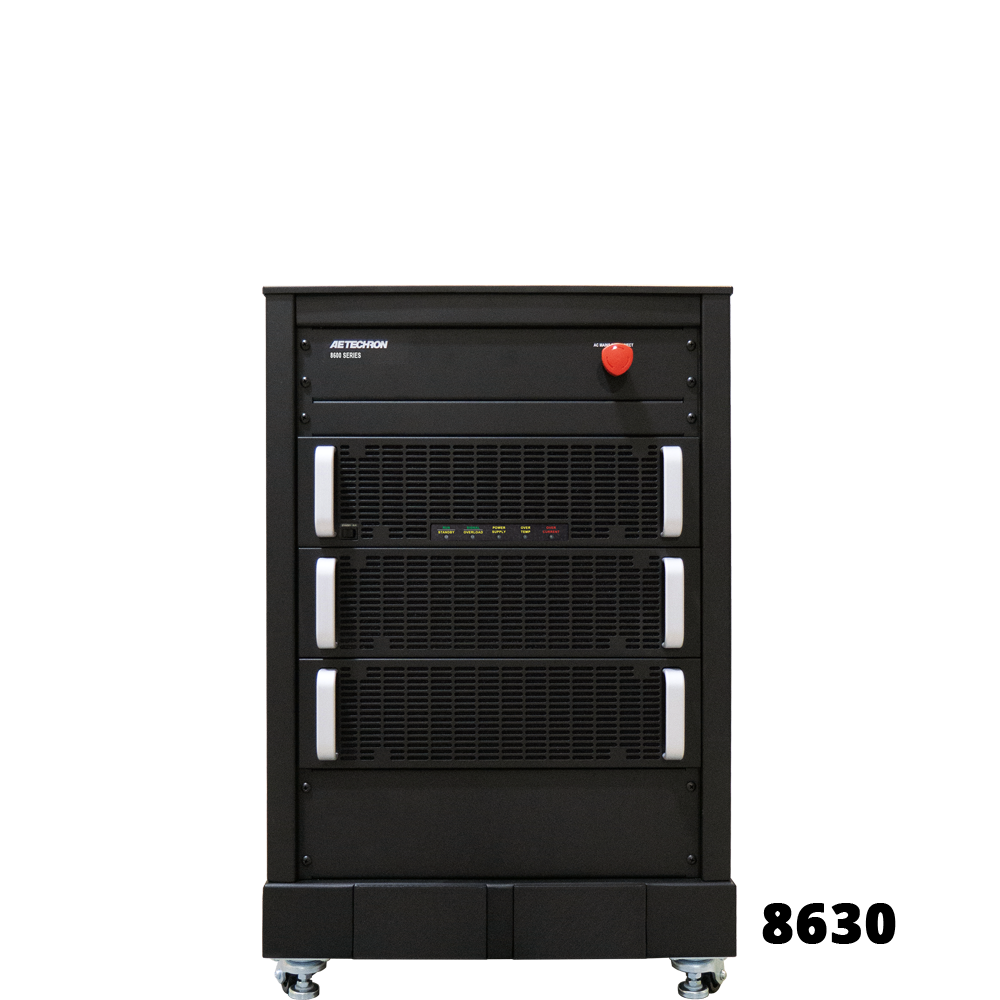

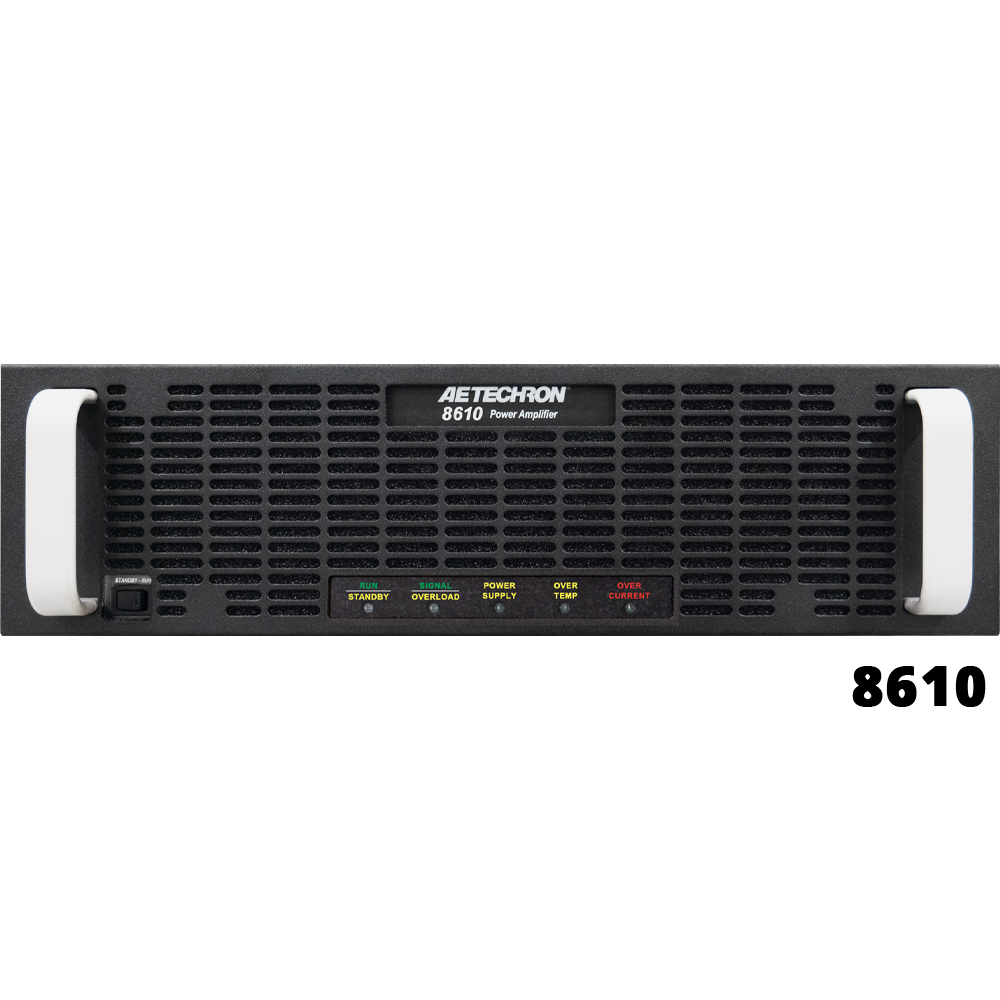

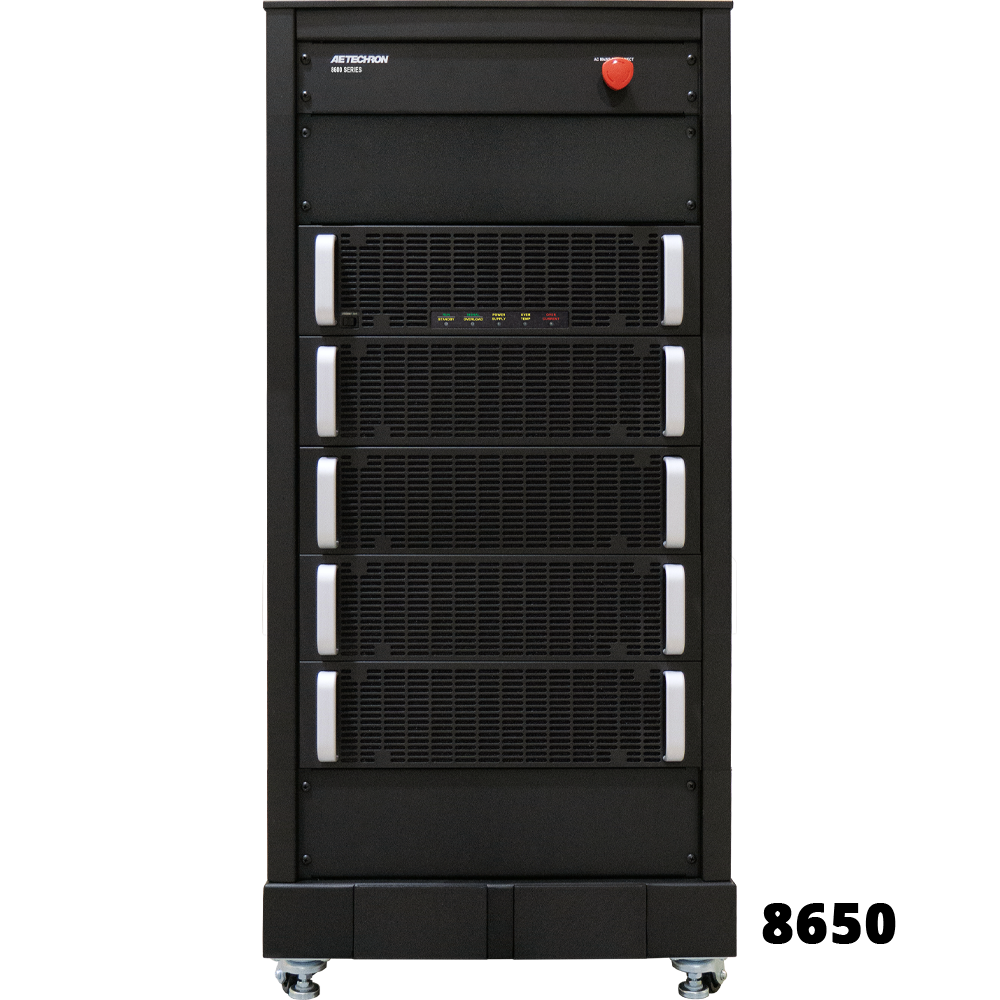

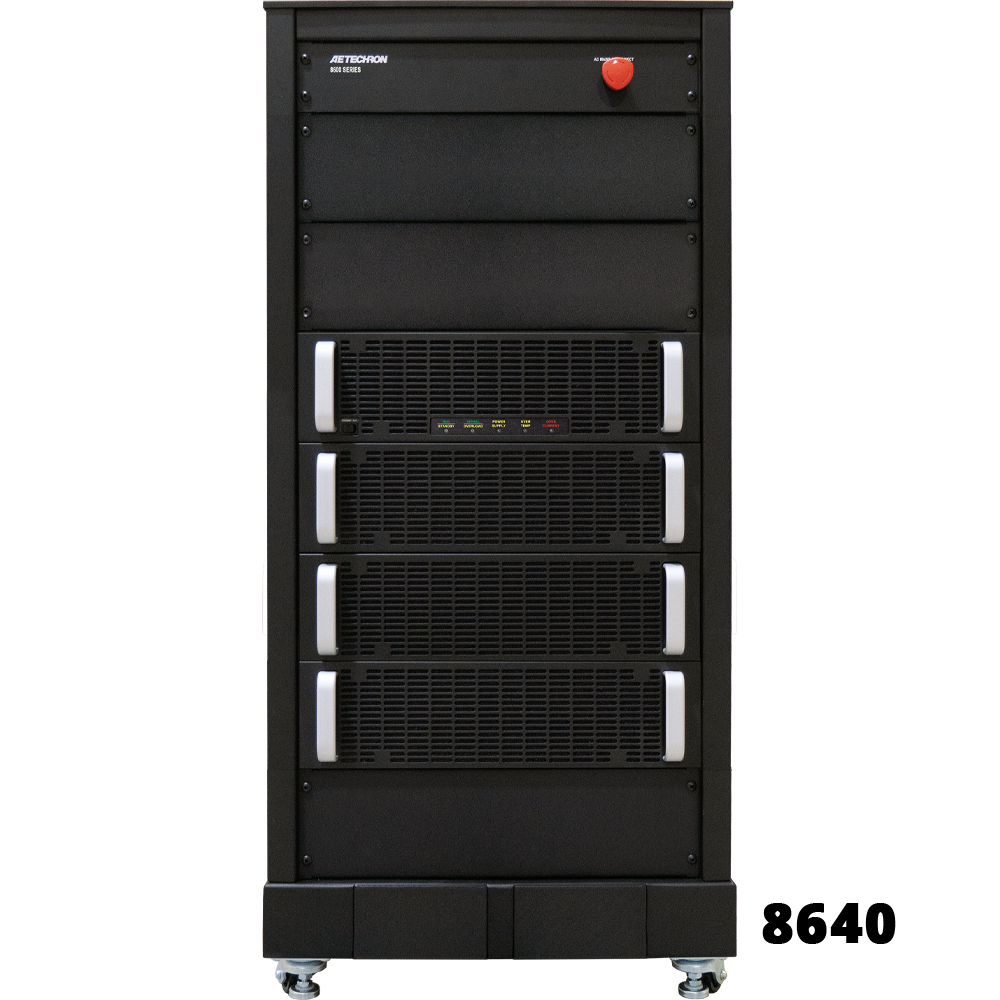

8600 Series
DC – 50 kHz, 400 Vp Switch-Mode Amplifiers
- Bandwidth:Â DC to 50 kHz
- Voltage:Â 0 to 250 VRMS; 0 to 350 VDC
- Slew rate: Up to 80 V/µs
- Current:Â Up to 80 to 480 ARMS*
- Distortion:Â <0.2%
- Power: 10 kW to 60 kW*
- Available in 6 models
8700 Series
DC – 250 kHz, 400 Vp Switch-Mode Amplifiers
- Bandwidth:Â DC to 250 kHz
- Voltage:Â 0 to 250 VRMS; 0 to 350 VDC
- Slew rate: Up to 300 V/µs
- Current:Â Up to 60 to 360 ARMS*
- Distortion:Â <0.8%
- Power:Â 4 kW to 24 kW*
- Available in 6 models
9100 Series
DC – 250 kHz, 200 Vp Switch-Mode Amplifiers
- Bandwidth:Â DC to 250 kHz
- Minimum Drop/Rise Time: 7µs
- Slew Rate: Up to 150 V/µs
- Max Voltage:Â 0 to 200 Vp
- Max Current:Â Up to 50 to 150 Ap
- Distortion:Â <0.1% at 1 kHz below clip
- Max Long-Term Power:Â 5 kW*
- Typical Output Ripple:Â 0.6V RMS
- Available in 3 models
9205/9305
DC – 250 kHz, Multi-Channel Switch-Mode Amplifiers
- Bandwidth:Â DC to 250 kHz
- Minimum Drop/Rise Time: 7µs
- Slew Rate: Up to 150 V/µs
- Max Voltage:Â 0 to 200 Vp
- Max Current: Up to 40 Ap per Channel
- Distortion:Â <0.1% at 1 kHz below clip
- Max Long-Term Power:Â 5 kW
- Multi-Channel Options:Â Available in 2- or 3-channel versions
