7548

Industrial Amplifier for Pulse or Continuous Duty

7548

Up to 100 Ap/195 Vp, DC to 100 kHz, Three-Phase

  • Field-selectable controlled-voltage or controlled-current operation
  • Can be switched between rail supply modes to optimize for various load impedances
  • Protection circuits guard against over/under voltage, over current, over temperature, and circulating ground currents

Key Performance Capabilities:

  • Over 12,000 watts peak for 40 ms and 5,500 watts peak continuous into a 1Ω load
  • 40 ms pulses of up to 105 Ap into a 1Ω load
  • Frequency bandwidth of DC-50 kHz at rated power; DC-100 kHz at reduced power
  • Continuous system output of 800 Vp or 170 Ap maximum are possible with multiple, interconnected amplifiers

SKU: N/A Category:
OVERVIEW

The 7548 amplifier is a DC-enabled, high-powered unit designed to provide very low noise and fast slew rates. A single 7548 has an output capability of 100 amperes peak and 200 volts peak when driving typical MRI gradient coil loads. It can output a 40 ms pulse with up to 105 amperes peak current into a 1-ohm load. If more current is needed, up to four amplifiers can be combined in series or parallel and operate as a single system.

The 7548 can operate in either voltage or current mode and features robust output devices and a power range of over 3300 watts RMS. It can safely drive a wide range of resistive, inductive loads.

Typical use includes as a power source for EMC testing in applications that require both continuous AC or DC signals and significant short term (burst) signals. It can be combined in a three-phase system ideal for MIL-STD-704F (AC and 28V DC tests).

OUTPUT CHART

AC Output

Note: Testing performed into resistive loads as specified. Performance reported is typical into the specified load up to 20 kHz frequency levels. Performance may be affected when operating into highly reactive loads or above 20 kHz, reducing maximum voltage, current and power output.

*Testing not performed.

PEAK OUTPUT RMS OUTPUT
40mSec Pulse,
20% Duty Cycle
5 Min,
100% Duty Cycle
1 Hr,
100% Duty Cycle
5 Min,
100% Duty Cycle
1 Hr,
100% Duty Cycle
Ohms Volts Amps Volts Amps Volts Amps Volts Amps Volts Amps Watts
Open 200 0 200 0 200 0 141 0 141 0 0
16 195 12 195 12 195 12 138 8 138 8 1170
8 183 23 183 23 183 23 129 16 129 16 2104
4 165 41 165 41 165 41 117 29 117 29 3381
2 150 75 * * 86 43 * * 61 30 1848
1.5 134 90 * * * * * * * * *
1 116 105 * * * * * * * * *
0.5 66 112 * * * * * * * * *

DC Output

Note: Testing performed in high-current mode.

OUTPUT (Amperes)
Volts DC 10 Min,
100% Duty Cycle
1 Hr,
100% Duty Cycle
13.5 15 10
24.0 17 12
48 30 20
PERFORMANCE

SPECIFICATIONS

Performance

Note: Testing performed at 208V/415V AC. 7548 amplifiers can operate from 400V AC ±10%. Since these amplifiers have an unregulated power supply, low line conditions may slightly affect the maximum voltage potential. All testing was performed in Controlled-Voltage (CV) mode. Accuracy was measured when driven into a 10-ohm load with between 0.1V DC and 6V DC or between 0.2V AC and 5V AC presented at its inputs.

  • Frequency Response, DC – 300 kHz (1 watt): +1.0 to -1.5 dB
  • 8-Ohm Power Response (continuous duty):
    • DC to 40 kHz: ± 180 Vpk
    • DC to 50 kHz: ± 150 Vpk
    • DC to 150 kHz: ± 50 Vpk
    • DC to 200 kHz: ± 25 Vpk
  • Maximum Continuous Output Power: 3300 watts RMS
  • Power Sinking: 1.2 kVA at 120 VAC
  • Slew Rate: >35 V/µs
  • Residual Noise, 10 Hz – 20 kHz: Less than 250 µV
  • Unit to Unit Phase Error: ±0.1 degrees at 60 Hz
  • Phase Response (10 Hz – 10 kHz): ±5 degrees plus 600 nsec propogation delay
  • THD (DC – 20 kHz): Less than 0.25%
  • Output Offset: Less than ±200 µV
  • Output Offset Current: Less than 10 mA, DC
  • DC Drift:
    • From Cold to Maximum Operating Temperature: ±400µV
    • After 20 minutes of Operation: ±200µV
  • Output Impedance: 3.2 mOhm in Series with 2.2 µH


Input Characteristics

  • Balanced with ground: Three terminal barrier block connector, 20k ohm differential
  • Unbalanced: BNC connector, 10k ohm single ended
  • Gain, Voltage Mode: 20 volts/volt;  Current Mode: 20 amperes/volt
  • Gain Linearity (over input signal, from 0.2V to 5V):
    • DC: 0.15%
    • AC: 0.030%
  • Max Input Voltage: ±10V, balanced or unbalanced
  • Input Impedance: 20 kOhm; differential
  • Input Sensitivity: 3.0V input for 3800W output into 1 ohm (adjustable)
  • Common Mode Rejection Range: -±11 VDC maximum
  • Common Mode Rejection Ratio: Better than -65 dB


Status Display, Control, I/O

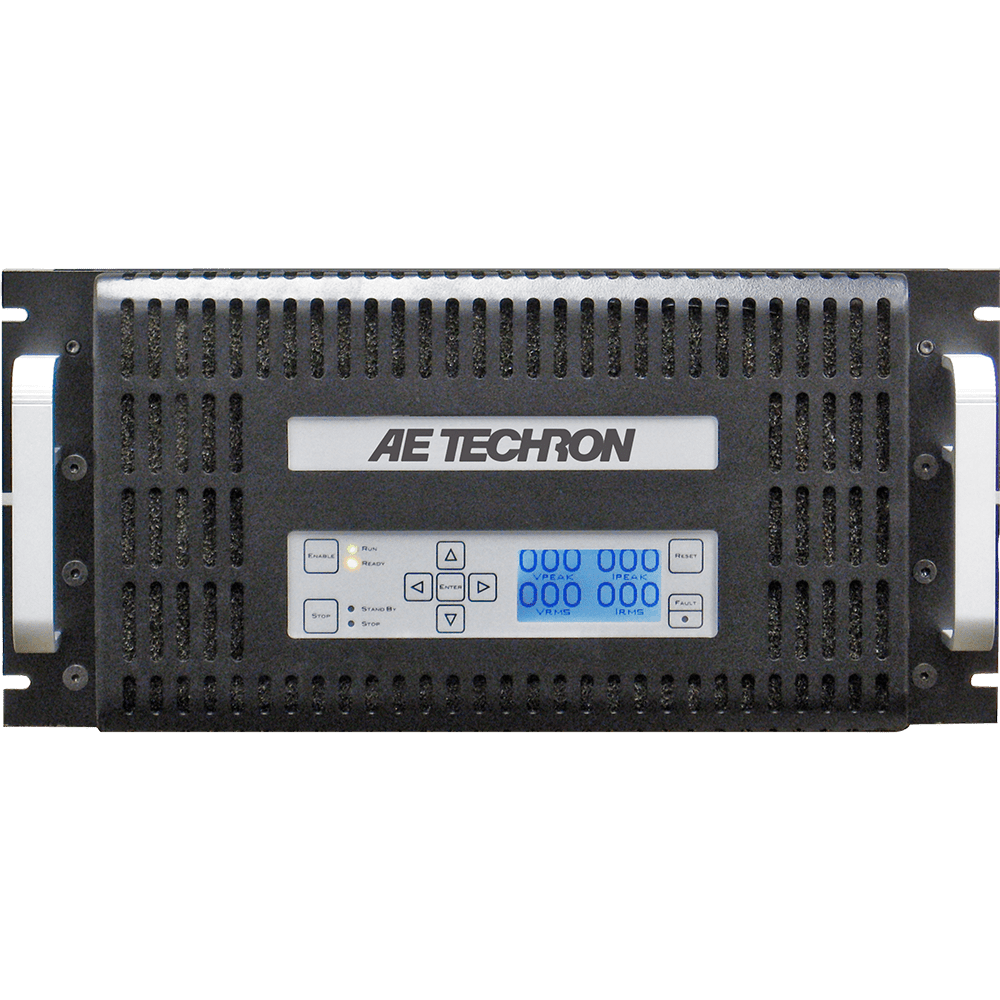

  • Front Panel LED Displays indicate: Ready, Standby, Fault
  • Soft Touch Switches for: Run, Stop, Reset
  • LCD Display: Can be configured for up to four simultaneous displays reporting one, two, or all four of the following: Vp, VRMS, Ap, ARMS Also reports any fault conditions that occur and suggests corrective action.
  • Back Panel Power Connection: NEMA-style locking receptacle; matching AC connector also included
  • Signal Output: 4-position terminal barrier block (OUTPUT / COMMON / SAMPLED COMMON / CHASSIS GROUND); resistor installed between SAMPLED COMMON AND CHASSIS GROUND is a 2.7-ohm, 2W, 5%, metal-oxide resistor
  • Signal Input: User-selectable BNC or Barrier Strip, balanced or unbalanced
  • Interlock Connector: 25-pin D-sub connector used for amplifier control and status applications; also used in multi-amplifier applications


Communication Capabilities

  • Current Monitor: 20A/V ± 1%; 10A/V ± 1% (differential configuration)
  • Reporting: System Fault, Over Temp, Over Voltage, Over Load
  • Remote Control via Interlock Connector: Blanking control, Force to Standby, Reset after a fault


Protection

  • Over/Under Voltage: ± 10% from specified supply voltage amplifier is forced to Standby
  • Over Current: Breaker protection on both main power and low voltage supplies
  • Over Temperature: Separate Output transistor, heat sink, and transformer temperature monitoring and protection


Physical Characteristics

  • Chassis: The amplifier is designed for stand-alone or rack-mounted operation. The chassis is aluminum with a black powder-coat finish. The unit occupies five EIA 19-inch-wide units.
  • Weight: 103 lbs (46.7 kg), Shipping 115 lbs (52.2 kg)
  • AC Power: Three-phase, 208 VAC (±10%), 47-60 Hz, 20A AC service; (400 VAC (±10%), 15A model available)
  • Operating Temperature: 10°C to 50°C (50°F to 122°F), maximum output Power de-rated above 30°C (86°F).
  • Humidity: 70% or less, non-condensing
  • Cooling: Forced air cooling from front to back through removable filters via four 100-ft3/min. fans. No space is required between rack-mounted amplifiers. Air filters are removeable from the rear via one fastener per side and may be eliminated if cabinet filtration is provided.
  • Dimensions (HxWxD): 8.75″ x 19″ x 22.8″ (22.2 cm x 48.3 cm x 57.9 cm)
PHOTOS

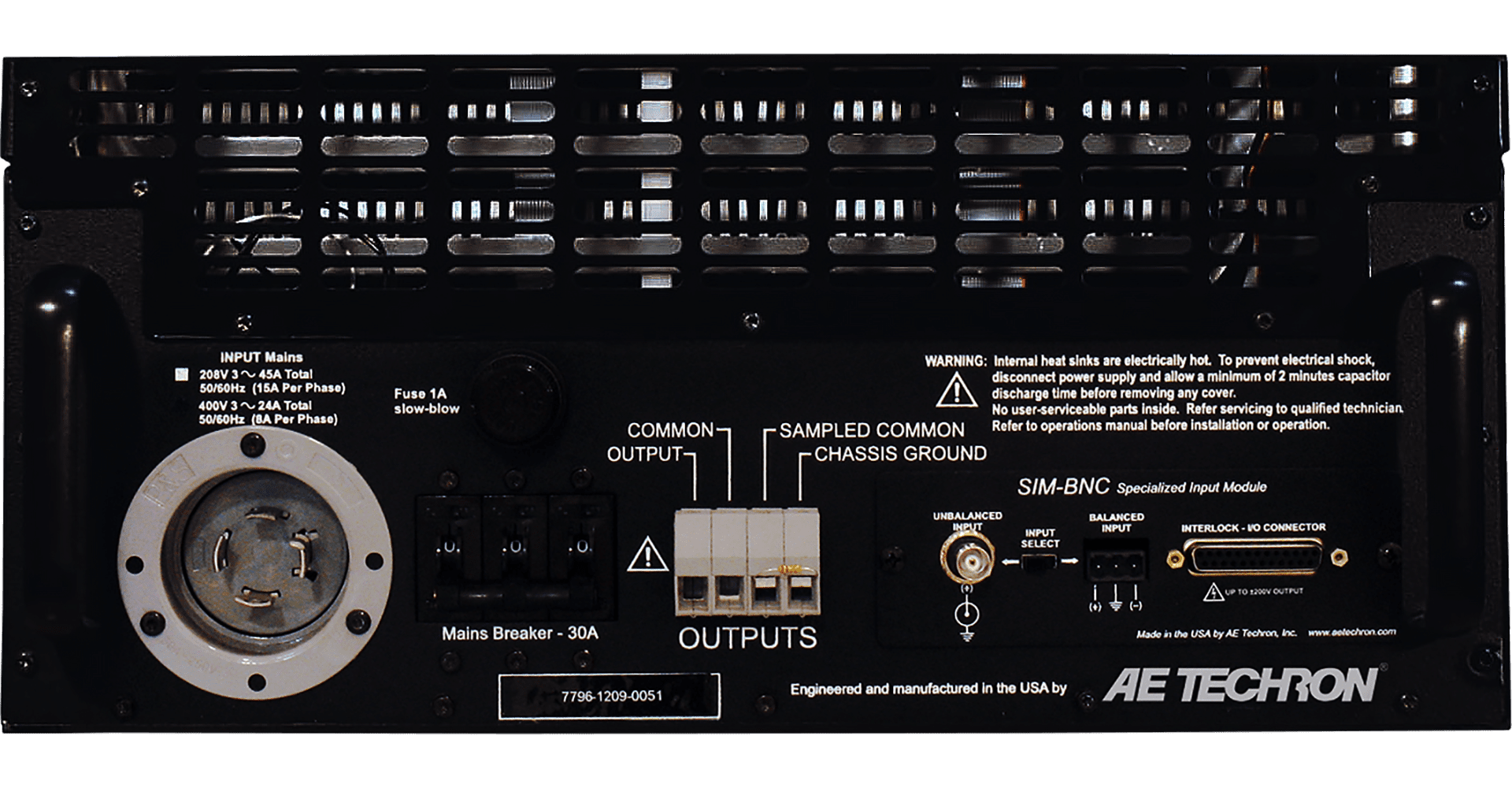

Controls, Indicators and Connectors

DIP Switch Settings



DOCUMENTS / DOWNLOADS
7548 Data Sheet 7548 Manual SIM Interlock Connector Pinouts and Functions DXF Model for Chassis Step File for Chassis
