DC-50kHz Switch-Mode Amplifier
8302
2 kW (up to 50 kVA), up to 425A continuous, single-phase
- Bandwidth: DC to 50 kHz
- Voltage: 0 to 140 VRMS; 0 to 200 VDC
- Slew rate: Up to 60 V/µs
- Current: Up to 65 ARMS*
- Distortion: <0.2%
- Power: 2 kW*
- Power levels up to 5X rated power when driving reactive loads
- High power efficiency and density
*Models available with output power from 2 kW to 10 kW (capable of up to 50 kVA).
OVERVIEW
8302 amplifiers are 200Vp, low-noise, DC-to-50-kHz switch-mode amplifiers. They are fast enough for DC automotive dropout testing and capable of AC voltages required for ISO 61000 and Aviation testing. Plus, they have low enough noise and distortion specifications to be the reference power source in power quality measurements. 1.1 Features Wide Bandwidth and Flexible The 8302 amplifier is capable of reproducing AC, DC and AC+DC waveforms into loads from a dead short to high impedance. It can be used to simulate a battery at 13.5 VDC or be an AC source with a L-N potential of up to 140 VAC. Rated current, for a given voltage, is available for all waveform types (AC, DC or AC+DC) at frequencies from DC to 50 kHz. Voltages from 0 to 140 VRMS are available with no changes in configuration.
The 8302 excels when it comes to driving reactive loads. As frequencies increase, the effective impedance of the load becomes a much larger part of the total load to be driven (especially with inductive loads like coils). However, when driving reactive loads, the 8302 is capable of receiving, reprocessing and returning to the load up to 5X its rated power. The result is a bench top system capable of 10 kVA+ output while drawing less than 2 kW of AC mains power.
Configurable:
A key to everyday product usability is quick and easy product (re)configuration. The 8300 Series provides all key configuration controls on the back panel of the unit. Configuration options available include:
- GAIN: Fixed or variable gain (0 to 40)
- CURRENT LIMIT: From 5% to rated limit (to protect fragile DUTs or where specified in the Standard)
- DC CONTROL: DC enabled or DC blocked and DC Servo (for driving transformer-coupled loads or coils)
- INPUT: Balanced and/or unbalanced
- MODE: Voltage source or current source
- OUTPUT IMPEDANCE: Variable from 0 to 1 ohm (Voltage mode)
- SENSE: Correction to voltage drops to the load
OUTPUT CHART
Output
| CONTINUOUS AC OUTPUT CURRENT | CONTINUOUS DC OUTPUT CURRENT* | ||||||||||
| VOLTS RMS | 8302 | 8304 | 8306 | 8308 | 8310 | VOLTS DC |
8302 | 8304 | 8306 | 8308 | 8310 |
| 60 | 28 | 50 | 75 | 100 | 125 | 13.5 | 65 | 115 | 175 | 2309 | 292 |
| 90 | 17 | 30 | 46 | 61 | 76 | 24 | 50 | 90 | 135 | 180 | 225 |
| 120 | 10 | 18 | 27 | 36 | 45 | 48 | 30 | 54 | 81 | 108 | 135 |
PERFORMANCE
SPECIFICATIONS
Performance Specifications
- Operating Modes: AC, DC and AC + DC
- Frequency, AC Mode Output (-3 dB): DC – 50 kHz
- Max Voltage Ranges (no load):
- AC: 0 – 140 VRMS
- AC + DC: 0 – ±200 VP
- Max Continuous Output Current: 65A RMS
- Surge Rating: 2X power at up to 200Vp or 150A
- Apparent Power Rating: Up to 5X continuous power rating at up to 200 Vp or 65A
- Supply Voltage: 120V ±10% 20A, 208V ±10% 20A, or 240V ±10% 20A, 50/60Hz
- Load Regulation (full scale): <0.025%, DC to 100 Hz; <0.05%, 10 Hz to 10 kHz
- Line Regulation (full scale): <0.1% for 10% line change
- External Sense: Voltage-drop compensation sense line
- Harmonic Distortion (80 kHz, low-passed): Less than 0.3% from 10 Hz to 30 kHz; 0.5% up to 50 kHz
- Harmonic Distortion (30 kHz, low-passed): Less than 0.1% from 10 Hz to 50 kHz
- DC Offset: <10 mV
- Distortion: <0.2%
- Voltage Slew Rate: Load dependent; up to 60V per µs, typically 10 µs to 30 µs for 10% to 90% of full-scale change depending on load and power
- Efficiency: 85%, typical
- Power Factor: .72, typical
- Source Impedance: 3 mΩ + 3 µH
- Cooling: Internal forced-air fans
- Protection: Over/under voltage, over current, over temperature
- Input, Signal In:
- Unbalanced: BNC connector
- Balanced: Terminal strip
- Output: 3/8-inch high-current post connectors
Operating Environment
- Temperature: 5 °C to 50 °C (41 °F to 122 °F);
- Maximum output power derated above 30 °C (86 °F)
- Humidity: Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40 °C
- Altitude: 3000 m Maximum
- Environment: Indoor Use Only, Pollution degree 2
- Equipment Class: Group 1 Class A
- Transient Overvoltage: Overvoltage Category II
- Dimensions (HxWxD): 5.25 x 19.0 x 25.26 in (13.34 x 48.26 x 64.16 cm)
- Weight (approx): 84 lbs. (38.1 kg)

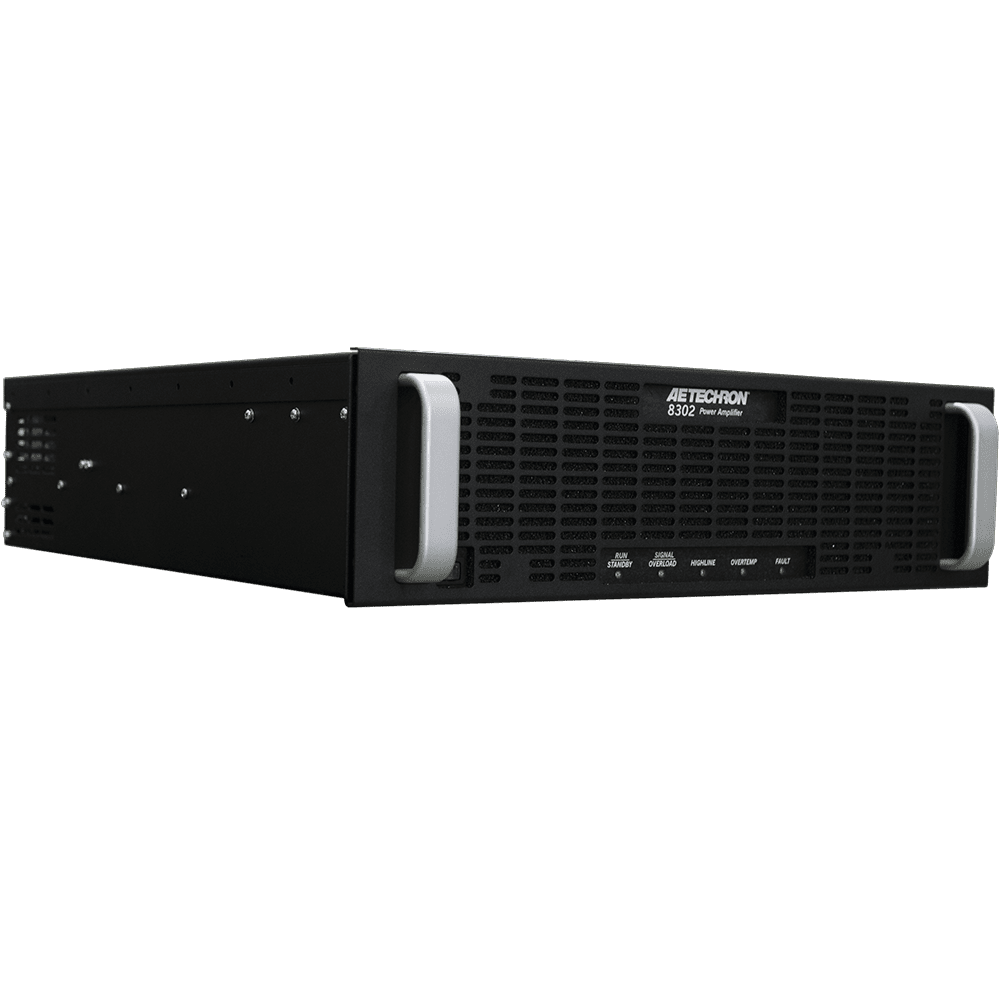

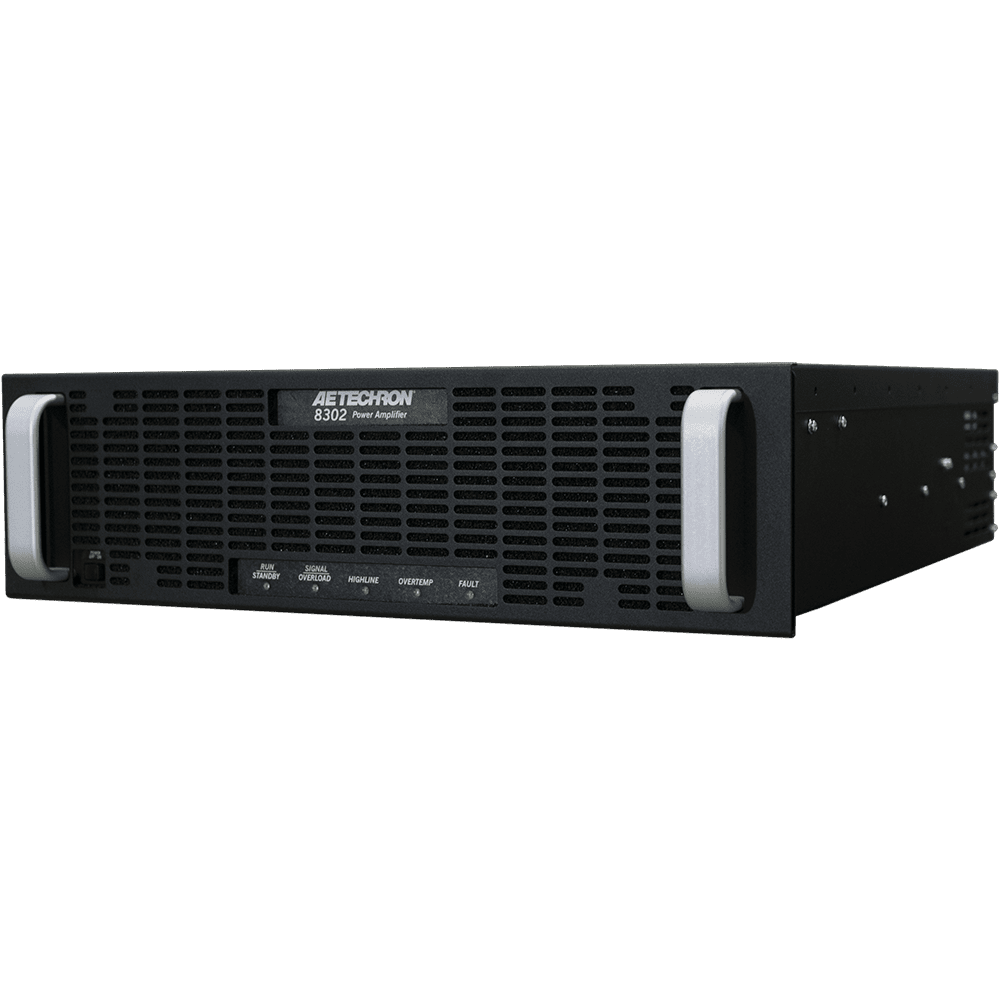

PHOTOS

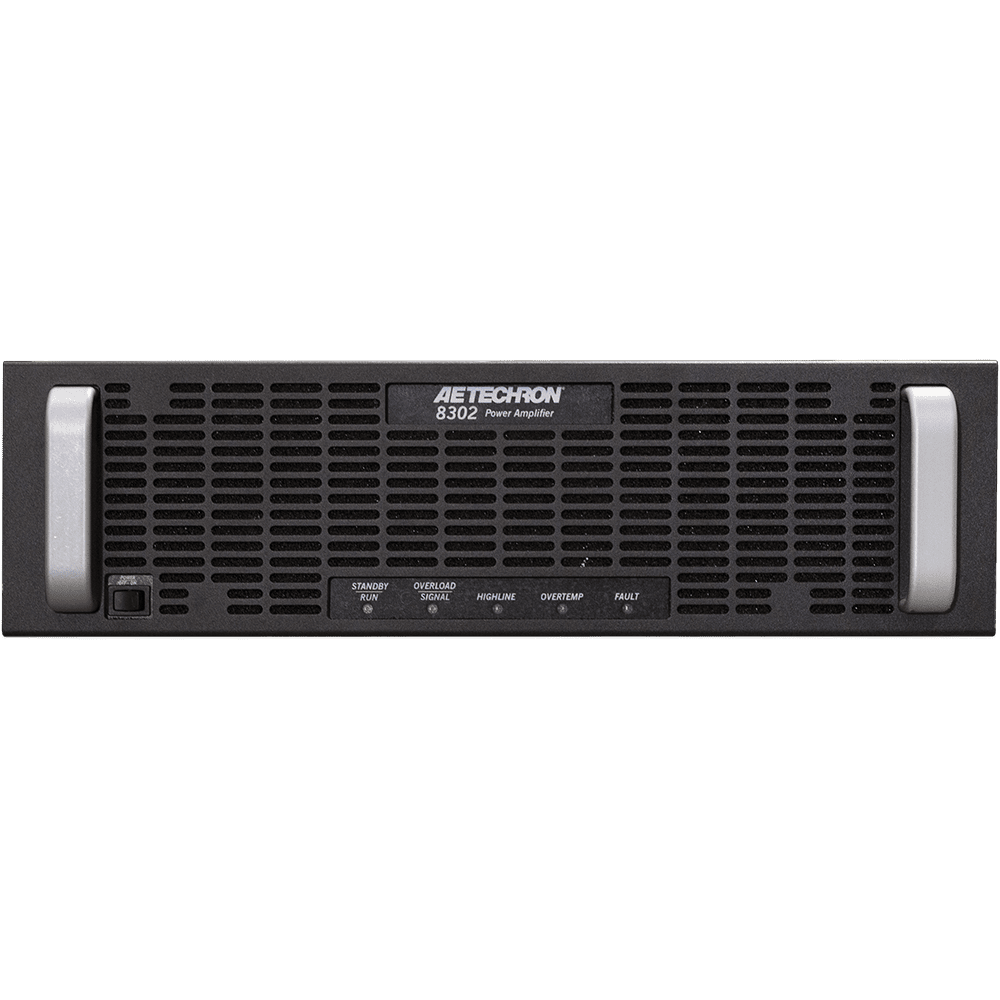

Controls, Indicators and Connectors
DOCUMENTS / DOWNLOADS
| 8300 Data Sheet | 8302 Manual | Configuration Settings | Step File for Chassis |
 |
 |
 |
 |
