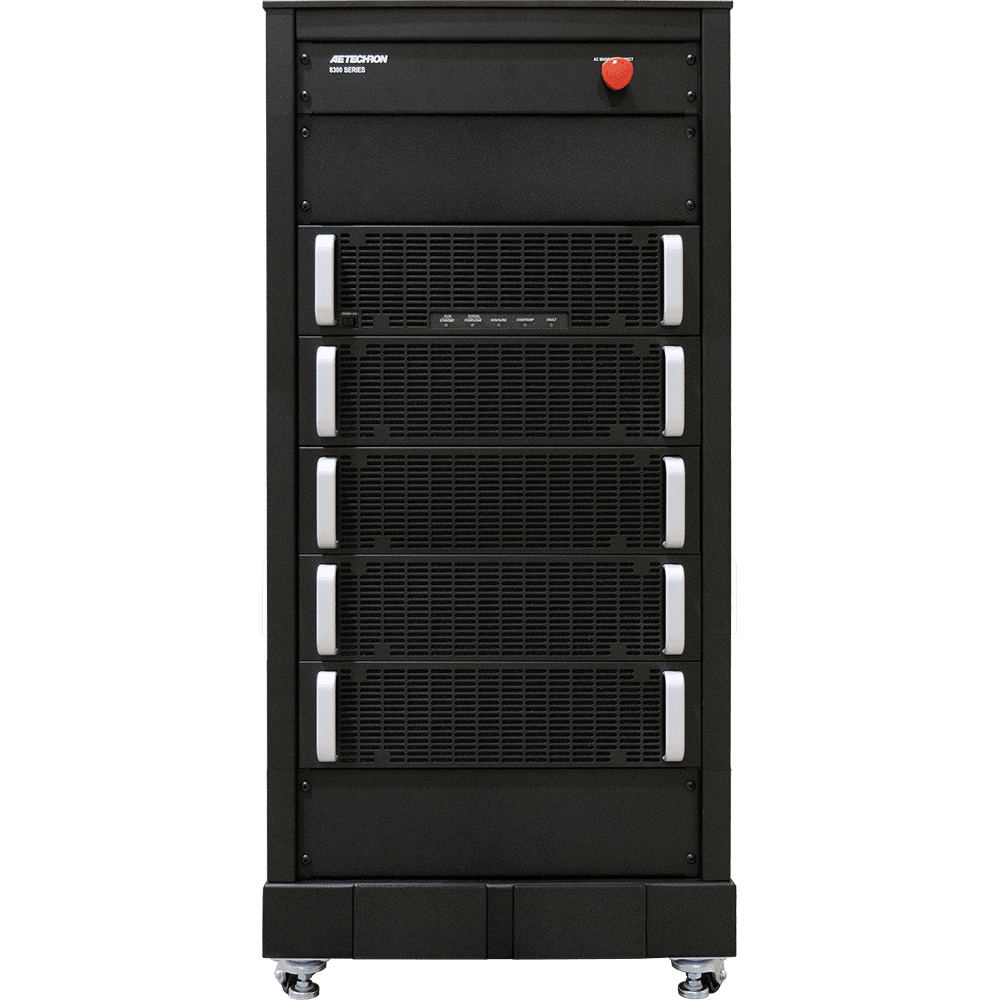

8310

DC-50 kHz Switch-Mode Amplifier

8310

10 kW (up to 50 kVA), up to 425A continuous, three-phase

Key Performance Capabilities:

Bandwidth: DC to 50 kHz
Voltage: 0 to 140 V_RMS; 0 to 200 VDC
Slew rate: Up to 60 V/µs
Current: Up to 300 A_RMS*
Distortion: <0.2%
Power: 10 kW*
Power levels up to 5X rated power when driving reactive loads
High power efficiency and density

*Models available with output power from 2 kW to 10 kW (capable of up to 50 kVA).

SKU: N/A Category: Amplifiers

Request a Quote

Ask a Question

OVERVIEW

8310 amplifiers are 200Vp, low-noise, DC-to-50-kHz switch-mode amplifiers. They are fast enough for DC automotive dropout testing and capable of AC voltages required for ISO 61000 and Aviation testing. Plus, they have low enough noise and distortion specifications to be the reference power source in power quality measurements. 1.1 Features Wide Bandwidth and Flexible The 8310 amplifier is capable of reproducing AC, DC and AC+DC waveforms into loads from a dead short to high impedance. It can be used to simulate a battery at 13.5 VDC or be an AC source with a L-N potential of up to 140 VAC. Rated current, for a given voltage, is available for all waveform types (AC, DC or AC+DC) at frequencies from DC to 50 kHz. Voltages from 0 to 140 VRMS are available with no changes in configuration.

The 8310 excels when it comes to driving reactive loads. As frequencies increase, the effective impedance of the load becomes a much larger part of the total load to be driven (especially with inductive loads like coils). However, when driving reactive loads, the 8310 is capable of receiving, reprocessing and returning to the load up to 5X its rated power. The result is a bench top system capable of 10 kVA+ output while drawing less than 10 kW of AC mains power.

Configurable: A key to everyday product usability is quick and easy product (re)configuration. The 8300 Series provides all key configuration controls on the back panel of the unit. Configuration options available include:

GAIN: Fixed or variable gain (0 to 40)
CURRENT LIMIT: From 5% to rated limit (to protect fragile DUTs or where specified in the Standard)
DC CONTROL: DC enabled or DC blocked and DC Servo (for driving transformer-coupled loads or coils)
INPUT: Balanced and/or unbalanced
MODE: Voltage source or current source
OUTPUT IMPEDANCE: Variable from 0 to 1 ohm (Voltage mode)
SENSE: Correction to voltage drops to the load

OUTPUT CHART

Output

CONTINUOUS AC OUTPUT CURRENT						CONTINUOUS DC OUTPUT CURRENT*
VOLTS RMS	8302	8304	8306	8308	8310	VOLTS DC	8302	8304	8306	8308	8310
60	28	50	75	100	125	13.5	65	115	175	2309	292
90	17	30	46	61	76	24	50	90	135	180	225
120	10	18	27	36	45	48	30	54	81	108	135

PERFORMANCE

SPECIFICATIONS

Performance Specifications

Operating Modes: AC, DC and AC + DC
Frequency, AC Mode Output (-3 dB): DC – 50 kHz
Max Voltage Ranges (no load):
- AC: 0 – 140 VRMS
- AC + DC: 0 – ±200 VP
Max Continuous Output Current: 300A RMS
Surge Rating: 2X power at up to 200Vp or 750A
Apparent Power Rating: Up to 5X continuous power rating at up to 200 Vp or 290A
Supply Voltage: Three-phase, 208V ±10%, 20A, 50/60 Hz; 400V ±10%, 40A version available
Load Regulation (full scale): <0.025%, DC to 100 Hz; <0.05%, 10 Hz to 10 kHz
Line Regulation (full scale): <0.1% for 10% line change
External Sense: Voltage-drop compensation sense line
Harmonic Distortion (80 kHz, low-passed): Less than 0.3% from 10 Hz to 30 kHz; 0.5% up to 50 kHz
Harmonic Distortion (30 kHz, low-passed): Less than 0.1% from 10 Hz to 50 kHz
DC Offset: <10 mV
Distortion: <0.2%
Voltage Slew Rate: Load dependent; up to 60V per µs, typically 10 µs to 30 µs for 10% to 90% of full-scale change depending on load and power
Efficiency: 85%, typical
Power Factor: .72, typical
Source Impedance: 3 mΩ + 3 µH
Cooling: Internal forced-air fans
Protection: Over/under voltage, over current, over temperature
Input, Signal In:
- Unbalanced: BNC connector
- Balanced: Terminal strip
Output: 3/8-inch high-current post connectors

Operating Environment

Temperature: 5 °C to 50 °C (41 °F to 122 °F);
- Maximum output power derated above 30 °C (86 °F)
Humidity: Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40 °C
Altitude: 3000 m Maximum
Environment: Indoor Use Only, Pollution degree 2
Equipment Class: Group 1 Class A
Transient Overvoltage: Overvoltage Category II
Dimensions (HxWxD): 45.80 x 22.56 x 31.56 in (116.33 x 57.3 x 80.16 cm)
Weight (approx): 540 lbs. (244.9 kg)
