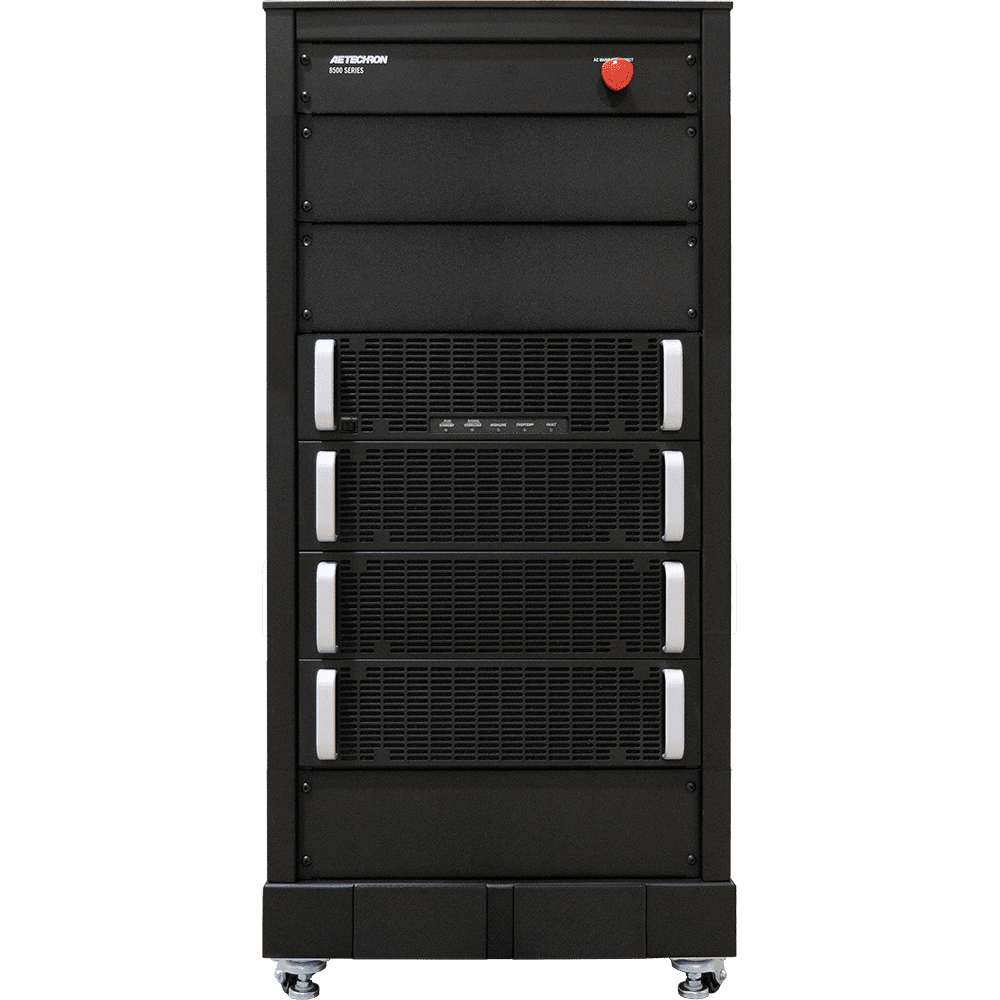

DC-250kHz Switch-Mode Amplifier
8716
16 kW (up to 120 kVA), up to 400A continuous, three-phase
- Bandwidth: DC to 250 kHz
- Voltage: 0 to 250 VRMS; 0 to 350 VDC
- Slew rate: Up to 300 V/µs
- Current: Up to 240 ARMS*
- Distortion: <0.8%
- Power: 16 kW*
- Power levels up to 4X rated power when driving reactive loads
- High power efficiency and density
*Models available with output power from 4 kW to 24 kW (capable of up to 96 kVA).
OVERVIEW
8716 amplifiers are 400Vp, low-noise, DC-to-250-kHz switch-mode amplifiers. They are fast enough for DC automotive dropout testing and capable of AC voltages required for ISO 61000 and Aviation testing. Plus, they have low enough noise and distortion specifications to be the reference power source in power quality measurements. The 8716 amplifier is capable of reproducing AC, DC and AC+DC waveforms into loads from a dead short to high impedance. It can be used to simulate a battery at 13.5 VDC or be an AC source with a L-N potential of up to 140 VAC. Rated current, for a given voltage, is available for all waveform types (AC, DC or AC+DC) at frequencies from DC to 250 kHz. Voltages from 0 to 260 VRMS are available with no changes in configuration.
The 8716 excels when it comes to driving reactive loads. As frequencies increase, the effective impedance of the load becomes a much larger part of the total load to be driven (especially with inductive loads like coils). However, when driving reactive loads, the 8716 is capable of receiving, reprocessing and returning to the load up to 4X its rated power. The result is a bench top system capable of 10 kVA+ output while drawing less than 16 kW of AC mains power.
Configurable:
A key to everyday product usability is quick and easy product (re)configuration. The 8700 Series provides all key configuration controls on the back panel of the unit. Configuration options available include:
- GAIN: Fixed or variable gain (0 to 40)
- CURRENT LIMIT: From 5% to rated limit (to protect fragile DUTs or where specified in the Standard)
- DC CONTROL: DC enabled or DC blocked and DC Servo (for driving transformer-coupled loads or coils)
- INPUT: Balanced and/or unbalanced
- MODE: Voltage source or current source
- OUTPUT IMPEDANCE: Variable from 0 to 1 ohm (Voltage mode)
- SENSE: Correction to voltage drops to the load
OUTPUT CHART
Output
| CONTINUOUS AC OUTPUT CURRENT | CONTINUOUS DC OUTPUT CURRENT* | ||||||||||||
| VOLTS RMS |
8704 | 8708 | 8712 | 8716 | 8720 | 8724 | VOLTS DC |
8704 | 8708 | 8712 | 8716 | 8720 | 8724 |
| 60 | 60 | 120 | 180 | 240 | 300 | 360 | 13.5 | 55 | 110 | 165 | 220 | 275 | 330 |
| 120 | 32 | 64 | 96 | 128 | 160 | 180 | 24 | 55 | 110 | 165 | 220 | 275 | 330 |
| 230 | 10 | 20 | 30 | 40 | 50 | 60 | 48 | 55 | 110 | 165 | 220 | 275 | 330 |
Note: 8704 power ratings shown are for unit configured for 240VAC. At output voltages above 90VAC, units confirgured for 120VAC mains input may be breaker limited. Contact AE Techron for 120VAC performance ratings. Performance data is for a purely resistive load; performance will be improved into loads that are partially or completely reactive.
PERFORMANCE
SPECIFICATIONS
Performance Specifications
- Operating Modes: AC, DC and AC + DC
- Frequency, AC Mode Output (-3 dB): DC – 250 kHz
- Max Voltage Ranges (no load):
- AC: 0 – 260 VRMS
- AC + DC: 0 – ±400 VP
- Max Continuous Output Current: 240A RMS
- Surge Rating: 2X power at up to 400Vp or 600A
- Apparent Power Rating: Up to 4X continuous power rating at up to 400 Vp or 600A
- Supply Voltage: Three-phase, 208V ±10% 60A, 50/60 Hz, 400V ±10%, 60A version available
- Load Regulation (full scale): <0.025%, DC to 100 Hz; <0.05%, 10 Hz to 10 kHz
- Harmonic Distortion (80 kHz, low-passed): Less than 0.3% from 10 Hz to 30 kHz; 0.5% up to 50 kHz
- Harmonic Distortion (30 kHz, low-passed): Less than 0.1% from 10 Hz to 50 kHz
- DC Offset: <10 mV
- Distortion: <0.8%
- Voltage Slew Rate: Load dependent; up to 200V per µs, typically 8 µs for 10% to 90% of full-scale change depending on load and power
- Efficiency: 80%, typical
- Power Factor: .72, typical
- Source Impedance: less than 50 mΩ + less than 5 µH
- Cooling: Internal forced-air fans
- Protection: Over/under voltage, over current, over temperature
- Input, Signal In:
- Unbalanced: BNC connector
- Balanced: Terminal strip
- Output: 3/8-inch high-current post connectors
Operating Environment
- Temperature: 5 °C to 50 °C (41 °F to 122 °F);
- Maximum output power derated above 30 °C (86 °F)
- Humidity: Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40 °C
- Altitude: 3000 m Maximum
- Environment: Indoor Use Only, Pollution degree 2
- Equipment Class: Group 1 Class A
- Transient Overvoltage: Overvoltage Category II
- Dimensions (HxWxD): 48.55 x 22.56 x 31.56 inches (123.32 x 57.3 x 80.16 cm)
- Weight (approx): 460 lbs. (208.7 kg)
