CIS-25
Aviation Conducted/Induced Susceptibility Testing
CIS-25
DO-160 Sections 18 and 19 Testing Kit
AE Techron’s CIS-25 Test Kit combines into a single, complete package the items needed to accurately test to important Aviation standards like DO-160 sections 16 (up to 24VDC), 18 and 19, Boeing, Airbus, and MIL STD 461. Included with the kit are three coupling transformers (T1000, T2000, and T3700), the CR 600 Chattering Relay accessory, and a secure storage cabinet to keep the equipment safe.
The CIS-25 test system comes with two hours of expert consulting provided by EMC Specialist Patrick G Andre, who will answer any questions you might have about set-up or testing.
For Testing to These Requirements:
- DO-160 Section 16 (all tests 14VDC and 24VDC levels)
- DO-160 Section 18
- DO-160 Section 19
- Airbus ABD0100.1.8
- MIL STD 461 (CS101)
OVERVIEW
The DSR 100-25 test system, which is included with the CIS-25 Test Kit, has power in reserve. Each of our DSR Series models provides continuous DC power as rated, and is able to provide 4X rated power for in-rush testing up to 200 ms (such as is required in DO 160 Section 16). Plus, the DSR 100-25 system includes the complete 3110A Standard’s Library, so the CIS-25 Test Kit can be used for many other tests.
The equipment is easy to set up and use; all elements in the kit are robust and will provide you with many years of trouble-free service.

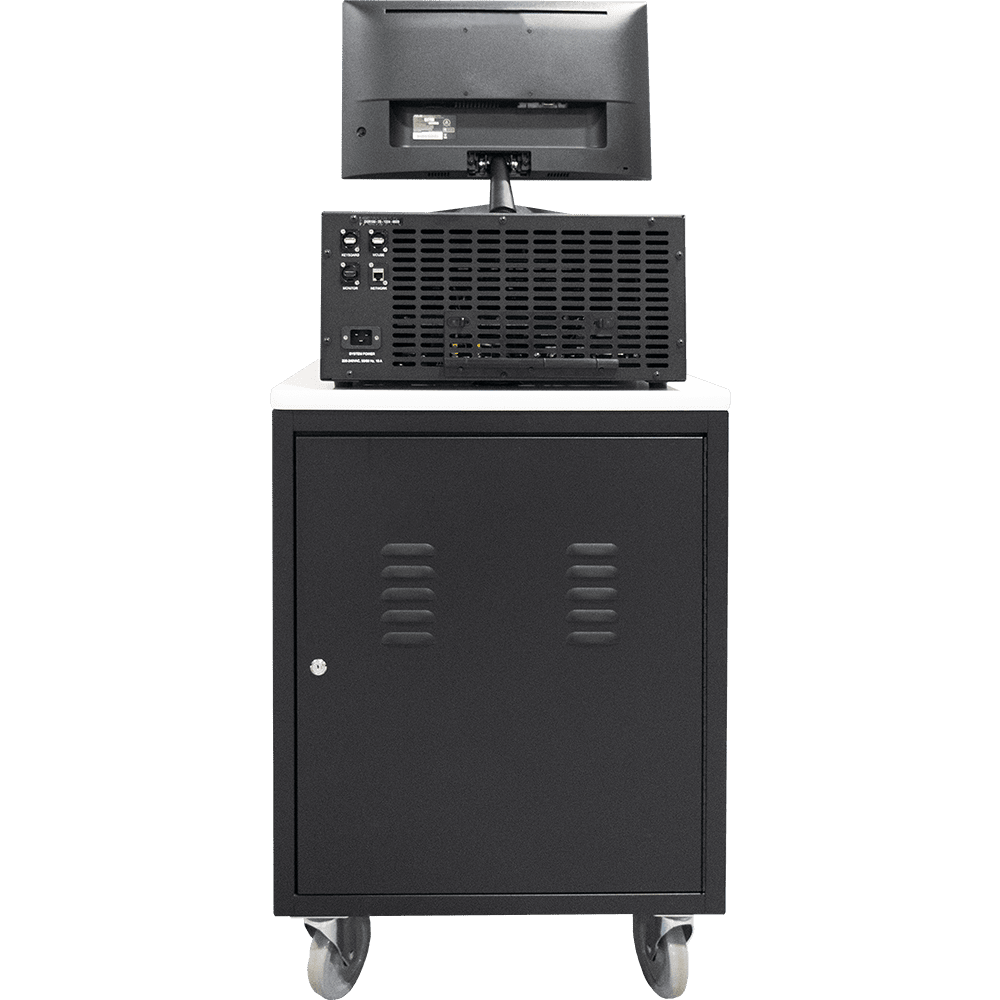

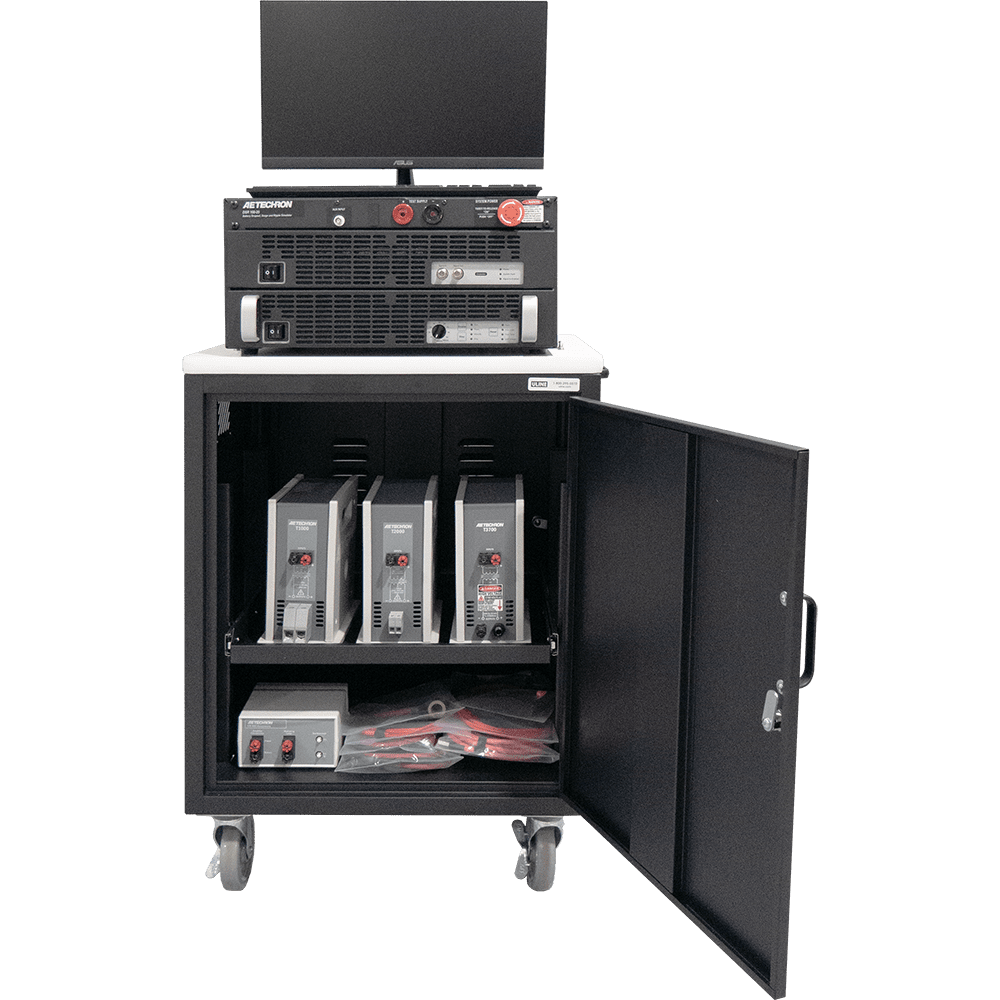

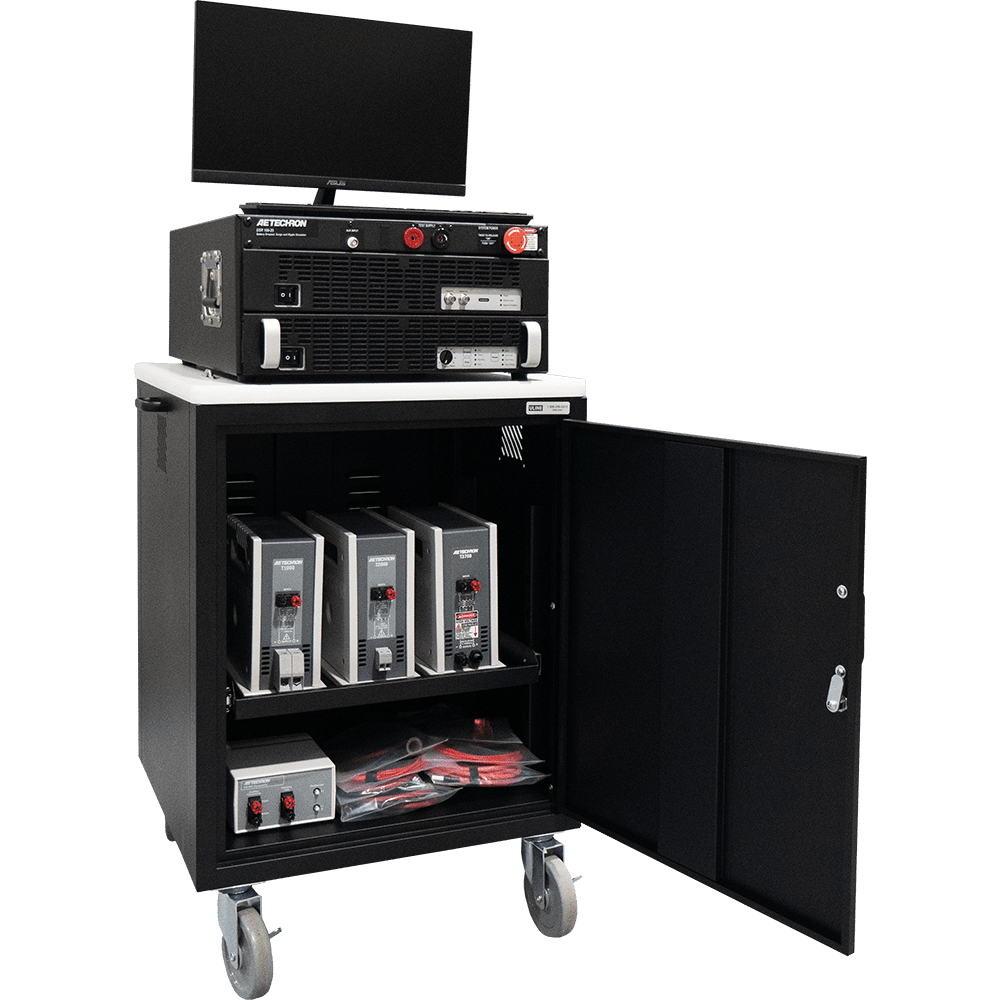

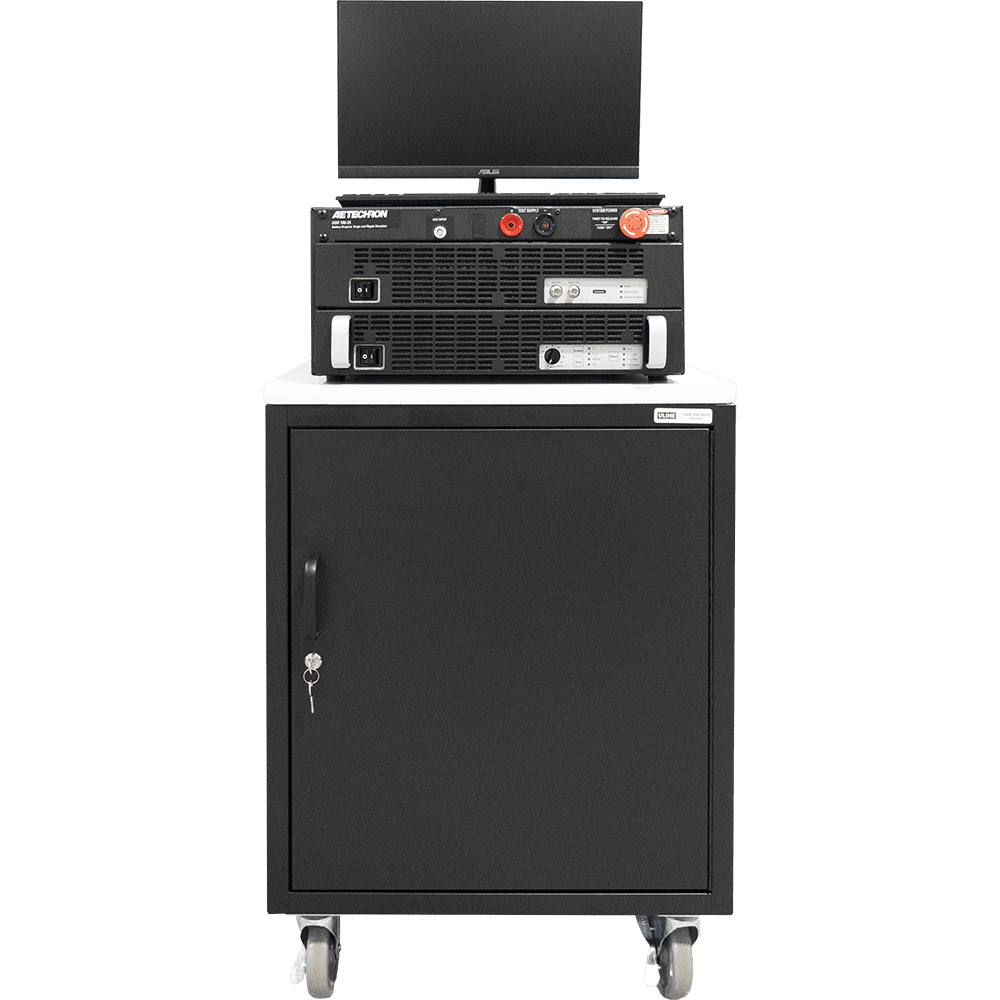

Kit Includes:
- DSR 100-25 Test System
- T 1000 Transformer
- T 2000 Transformer
- T 3700 Transformer
- CR 600, Chattering Relay
- Two Hours of Expert Consulting
- Secure Storage Case
- Plus all required cables and connectors
TEST SYSTEM CONTENTS
EMC Test System

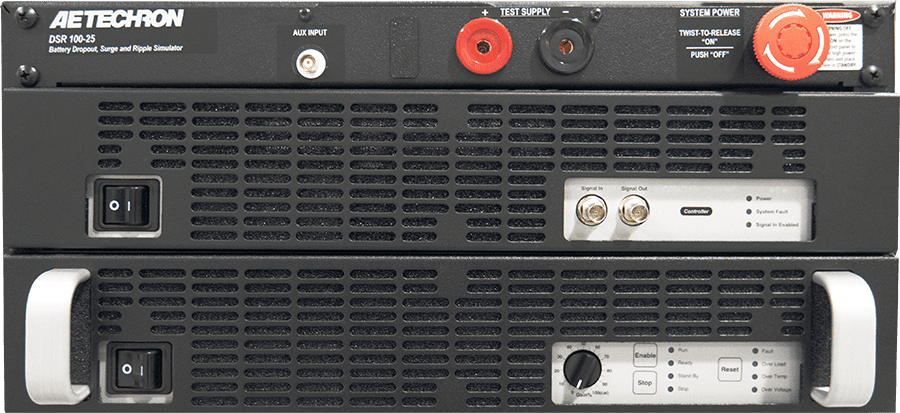

DSR 100-25 Dropout, Surge, Ripple Simulator and AC/DC Voltage Source. Includes amplifier/power supply, waveform generator, and complete 3110A Standard’s Library
- Output Current: 0A to 25A continuous
- Peak Current: 50A for 200 mS
- Bandwidth (-3dB),
- Full Signal: DC to 300 kHz;
- Small Signal: 3Vp-p to 1 MHz
- Supply Voltage: Single-phase, 120V ±10%, 30A, 50/60 Hz. 230V, 15A version available
- Output Range: –80V to +80V
- Source Impedance: 3 mΩ + 2.2 µH
- Operation: 4-quadrant, bi-polar operation
- Output Rise Time: <3 µS
- Noise Floor: 20 mV
- Remote Control: LAN
- Waveforms: Sine wave sweep, ripple (cranking), DC source, triangle wave, square wave, sawtooth wave
- Control Functions: Trigger, fixed loop, variable loop, template playback, GPIO output, LAN output
- Dimensions (HxWxD): 9.5 x 20 x 25 in. (24.1 x 50.8 x 63.5 cm)
- Weight: Approximately 76.5 lbs. (35 kg)

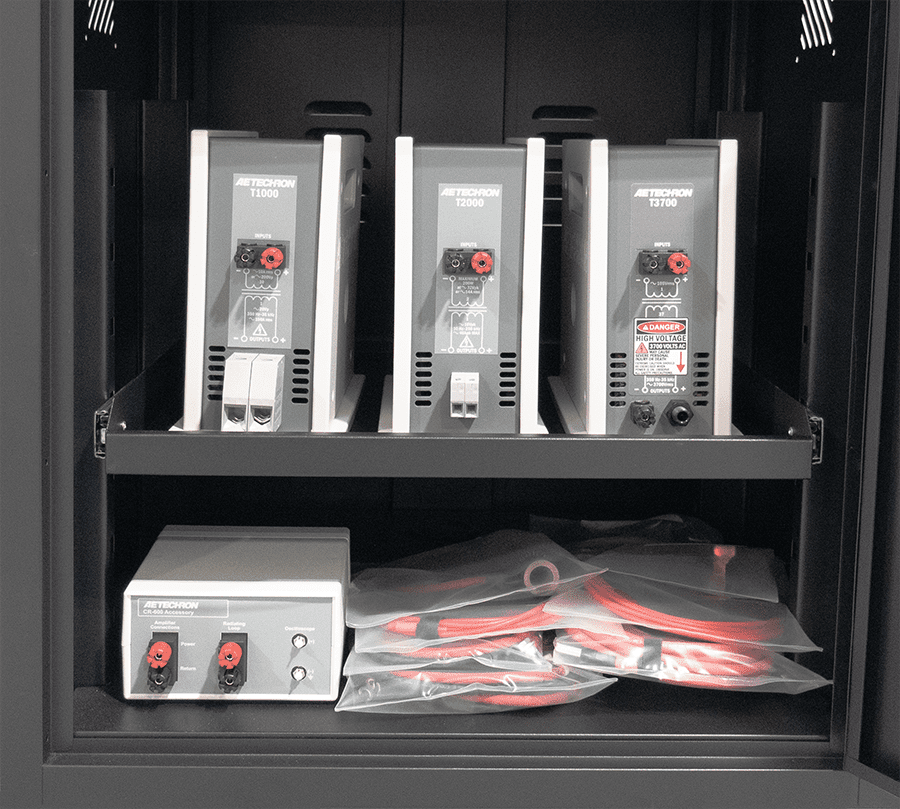

Transformers
- T1000 Magnetic Field Susceptibility Transformer: For testing to DO-160 Section 19 and Boeing D6-16050-5 Section 7.2
- Primary: 200 Vp maximum input
- Secondary: 20.0 Vp maximum output
- Dielectric Test: 1200 VDC
- T2000 Low-Frequency Conducted Susceptibility Transformer: For testing to DO-160 Section 16 and 18
- Transformer DC Resistance:
- Primary: 0.076 ohms
- Secondary: 0.021 ohms
- Dielectric Test: 1500 VDC primary to secondary
- T3700 Electric Field Susceptibility Transformer: For testing to DO-160 Section 19 and Boeing D6-16050-5 Section 7.2
- Primary: 100 VRMS maximum or 1 ARMS, maximum
- Secondary: 3700 VRMS maximum output
- Dielectric Test:
- Primary to Case: 5 kVDC
- Secondary to Case: 5 kVDC
Chattering Relay
- CR 600 Chattering Relay Accessory: For testing to DO-160 Section 19.3.5
- Coil Voltage: 24 VDC
- Coil Current: 84 mA
- Contact Rating: 30A
- Typical Pulse Voltage: >700 Vpp
- Connectors:
- Amplifier: Dual binding posts
- Radiating Loop: Dual binding posts
- Oscilloscope: Dual turret connectors
- Dimensions (HxWXD): 3.25 x 6.25 x 7.25 in. (8.3 x 15.9 x 18.4 cm)
- Weight: 1.5 lbs. (0.68 kg)
Expert Consulting
- Patrick G. Andre, Electromagnetic Compatibility Specialist
- Supplying the highest-quality engineering possible in electromagnetic compatibility design, test techniques, and informative training.
- Specializing in aerospace and military applications, highly skilled in troubleshooting as well as problem resolution, with an eye on cost and manufacturability.
Secure Storage
- Locking Cabinet: Rolling storage cabinet locks to protect equipment
- Load Capacity: 400 lbs.
- Construction: Powder-coated steel with laminate wood top
- Dimensions (HxWxD): 35 x 25 x 23 in. (88.9 x 63.5 x 58.4 cm)
- Weight: 80 lbs. (36.3 kg)
Accessories
- Includes all required cables and connectors for performing DO 160 testing for Sections 18 and 19.
STANDARDS TESTING LIST
AVIATION STANDARDS
- Airbus ABD0100.1.8 Issue E
- Airbus ABD0100 1.8.1 Issue C
- Boeing-D6-36440E
- DO160G Section 16 (all tests 14VDC and 24VDC levels)
- DO160G Section 18
- DO160G Section 19
- MIL STD 461G
- MIL STD 1275E
- IEC 61000 4-19
Complete Test Standards Library
