DSR 400 Series
Aviation AC and DC Power Test System
DSR 400 Series

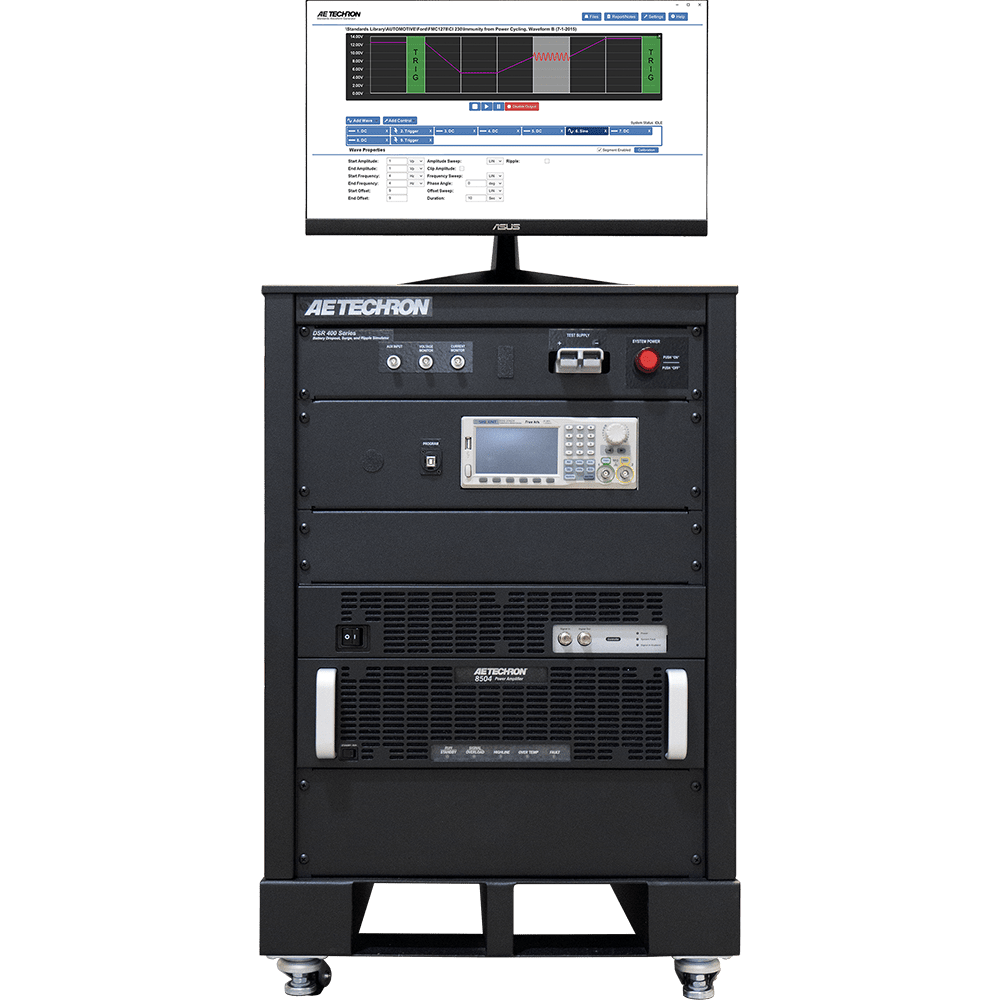

AE Techron’s DSR 400 Series systems provide complete, single-box solutions for immunity testing. This includes a simple-to-use yet powerful standards waveform generator, an industry-standard arbitrary waveform generator, plus an industry-leading power supply technology. It comes with an extensive library of tests for many automotive and aviation standards.
All models of the DSR 400 Series are 4-quadrant, allowing them to source and sink current. This series has power in reserve; each model provides continuous DC power as rated, and is able to provide 5X rated power for in-rush testing up to 200 ms, as is required in DO 160 Section 16. The DSR 400 Series comes with two hours of expert consulting provided by EMC Specialist Patrick G Andre, who will answer any questions you might have about set-up or testing.
System Features:
- Complete single-box solution for DO 160 Section 16 (115V, 14VDC, 28VDC) and MIL STD 704
- Includes library of 3,400+ pre-entered Automotive and Aviation Standards’ test routines
- Operate as a free- standing system using the included monitor, keyboard and mouse, or control via LAN
- Very easy to modify existing tests or build new test sequences
- Can function as a controller or node in a larger test system via built-in LAN and GPIO controls
- Models with 80A or 160A continuous output current available
- Both the 80 and 160 models allow the choice of either Siglent (model SDG 2042X) or Keysight (model 33511B) arbitrary waveform generator, with the Keysight configuration providing TAA compliance
OVERVIEW
Our drop-out, surge, ripple simulator and AC/DC voltage source provides a complete, single-box solution for DO-160 Section 16 (115V, 14VDC, 28VDC) and MIL STD 704 Sections 1-8. This includes a powerful standards waveform generator, an industry-standard arbitrary waveform generator, and an industry-leading power supply technology.
Key Performance Capabilities:
- 4-Quadrant – Can source and sink current
- ±400V – DC supply for 12V to 48V systems and 115V – 240V AC systems
- 50 kHz Sine – DC ripple tests for many standards
- 3mΩ DC Source Impedance – Out-performs ISO 7637-2 requirements
- Supports ground reference and supply offset testing required for ISO 16750-2 Sect. 4.8 and other similar standards
SPECIFICATIONS
Key Performance Capabilities
- Operation: 4-quadrant, bi-polar operation
- Output Rise Time: <30 µS
- Remote Control: GPIO, LAN
- Cooling: Internal forced-air fans
- Protection: Over/under voltage, over current, over temperature
- Trigger: Automatic repeat, manual trigger, external trigger via GPIO or LAN
Input
- Signal In: BNC connector
- LAN: Ethernet connector
Output
- DUT Supply +/-: High-current connectors
- Signal Output: BNC connector
- LAN: Ethernet connector
Waveforms
- Sine wave sweep
- Ripple (cranking)
- DC source
- Triangle wave
- Square wave
- Sawtooth wave
Control Functions
- Trigger
- Fixed loop
- Variable loop
- Template playback
- GPIO output
- LAN output
Operating Environment
- Temperature: 10°C to 50°C (50°F to 122°F), Maximum Output Power de-rated above 30°C (86°F)
- Humidity: 70% or less, non-condensing
- Atmospheric Pressure: 86 kPa (860 mbar) to 106 kPa (1,060 mbar)
MODEL COMPARISON

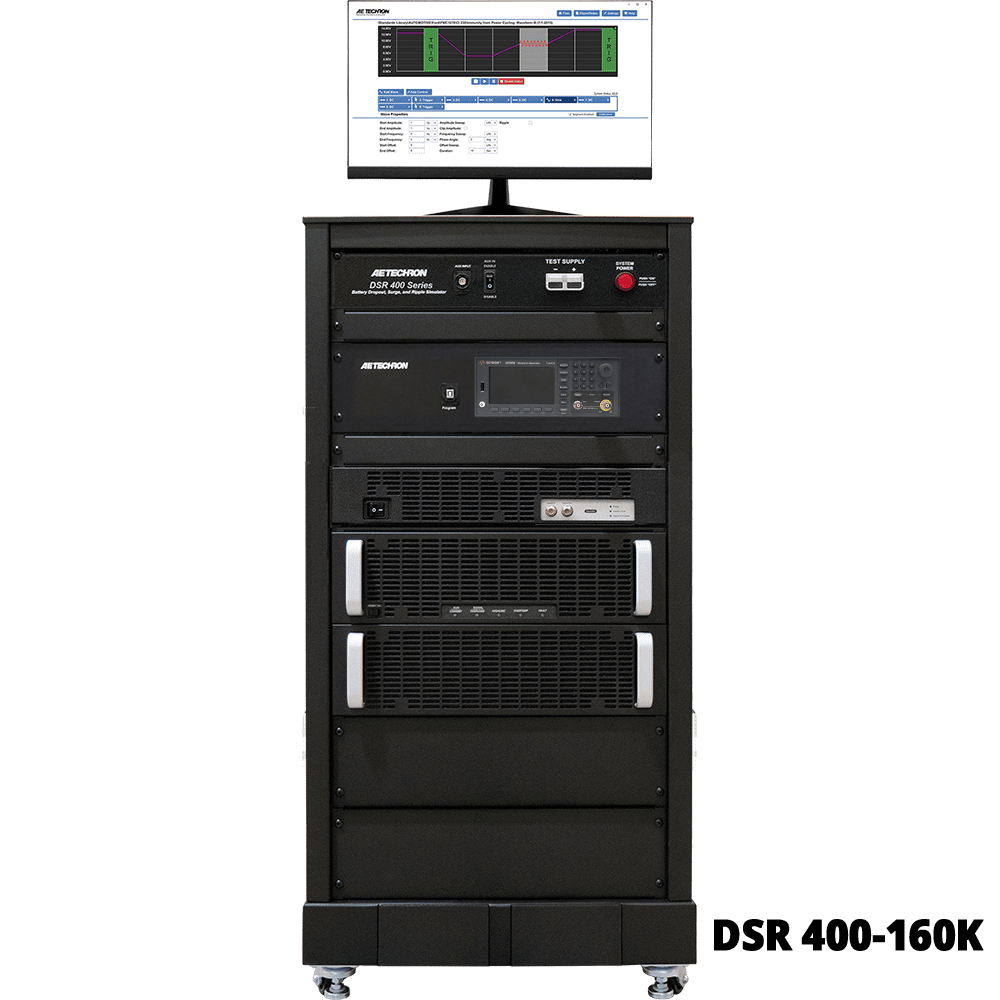

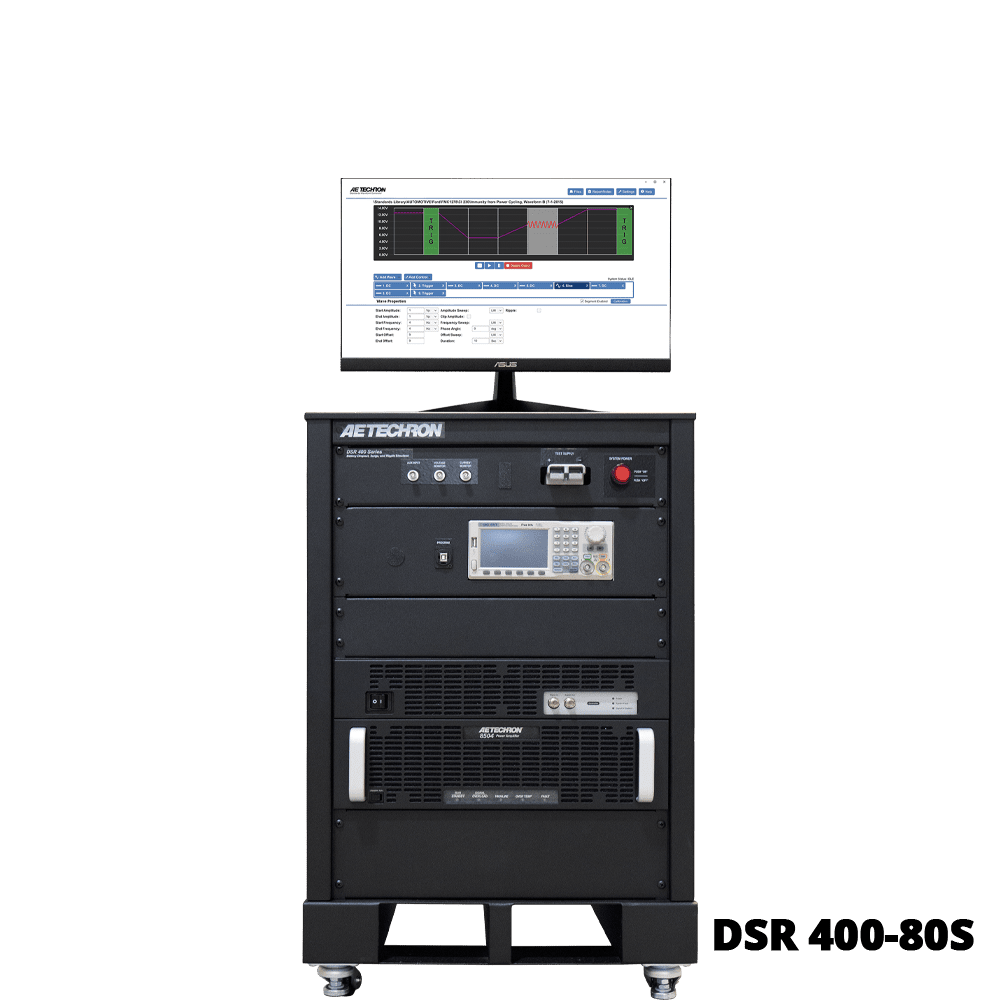

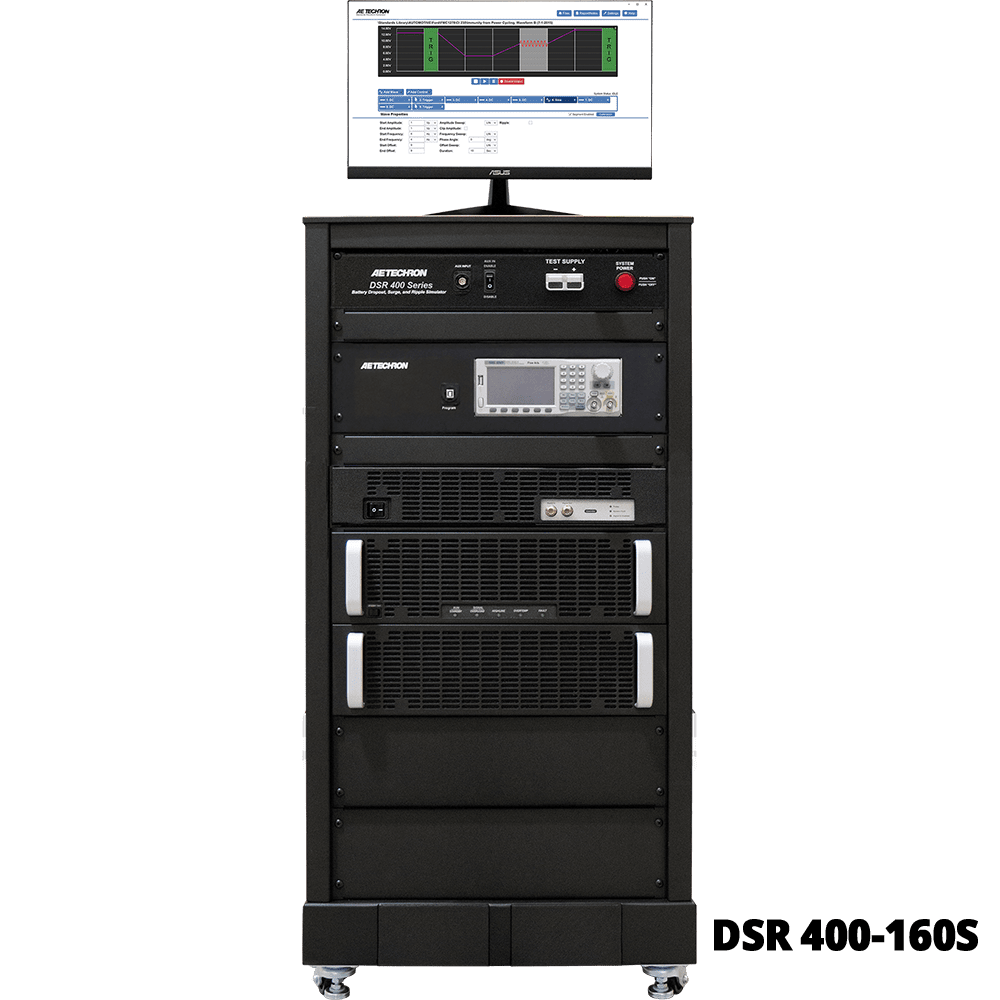

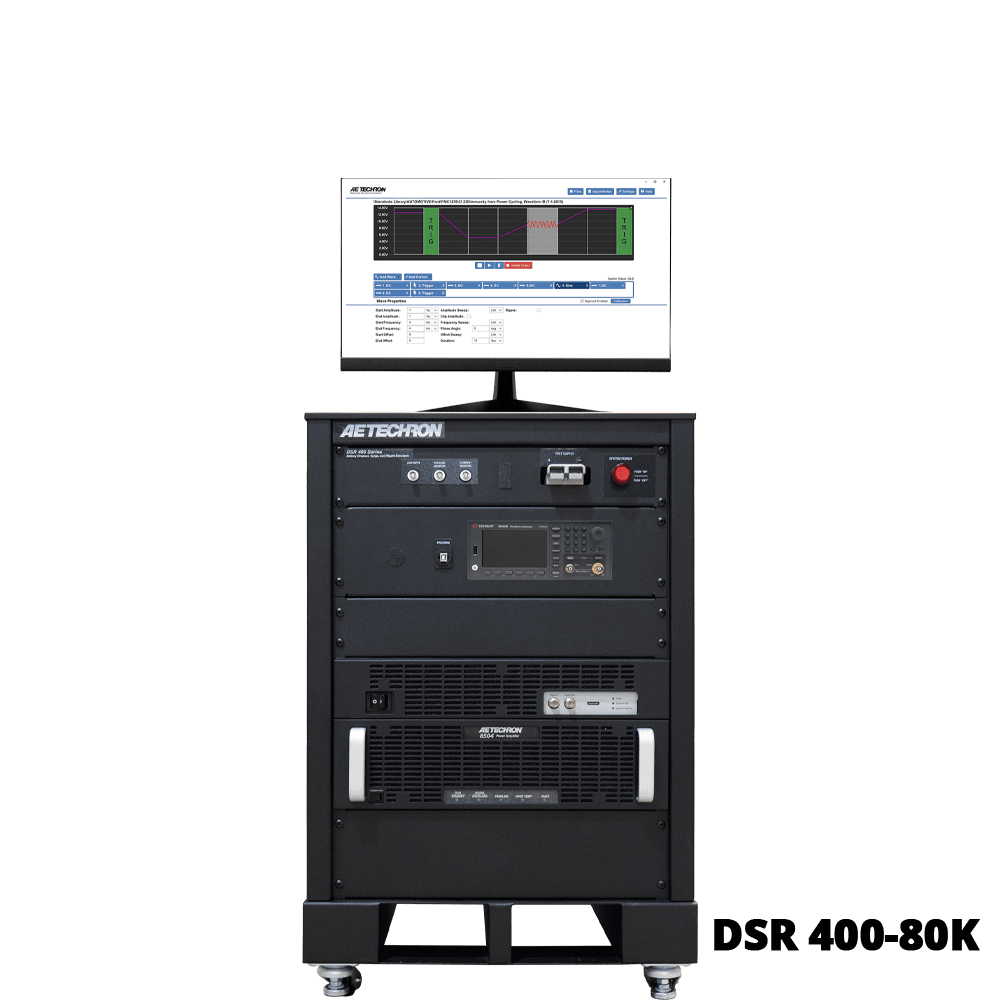

| Model | DSR 400-80S | DSR 400-80K | DSR 400-160S | DSR 400-160K |
| Voltage Output Range | –400V to +400V Max | –400V to +400V Max | –400V to +400V Max | –400V to +400V Max |
| Output Current (Continuous) | 0A to 80A | 0A to 80A | 0A to 160A | 0A to 160A |
| Peak Current | 150A for 200ms | 150A for 200ms | 300A for 200ms | 300A for 200ms |
| Bandwidth (-3dB): Full Signal | DC to 50kHz | DC to 50kHz | DC to 50kHz | DC to 50kHz |
| Source Impedance | 3 mΩ + 3 µH | 3 mΩ + 3 µH | 3 mΩ + 3 µH | 3 mΩ + 3 µH |
| Supply Voltage | Single-phase, 208V ±10%, 30A, 50/60 Hz, 230V/240V ±10%, 30A version available | Single-phase, 208V ±10%, 30A, 50/60 Hz, 230V/240V ±10%, 30A version available | 3-phase, 208V ±10%, 30A, 50/60 Hz, 400V ±10%, 30A version available | 3-phase, 208V ±10%, 30A, 50/60 Hz, 400V ±10%, 30A version available |
| Arbitrary Waveform Generator | Siglent (SDG 2042X) | Keysight (33511B) | Siglent (SDG 2042X) | Keysight (33511B) |
| Dimensions (H x W x D) |
34.55 x 22.22 x 30.29 in 87.76 x 56.44 x 76.94 cm |
34.55 x 22.22 x 30.29 in 87.76 x 56.44 x 76.94 cm |
48.55 x 22.22 x 30.29 in 123.32 x 56.44 x 76.94 cm |
48.55 x 22.22 x 30.29 in 123.32 x 56.44 x 76.94 cm |
| Weight (approx.) | 225 lbs. (102 kg) | 225 lbs. (102 kg) | 325 lbs. (147 kg) | 325 lbs. (147 kg) |
STANDARDS TESTING LIST
AVIATION STANDARDS
Airbus ABD0100.1.8
Boeing-D6-16050-5-C
DO160G Section 16
DO160G Section 18
DO160G Section 19
MIL STD 704F
Complete Test Standards Library
DOCUMENTS / DOWNLOADS
| DSR-400 Series Datasheet | 3110A Help Manual | DSR-400 Series Manual |
 |
 |
 |
