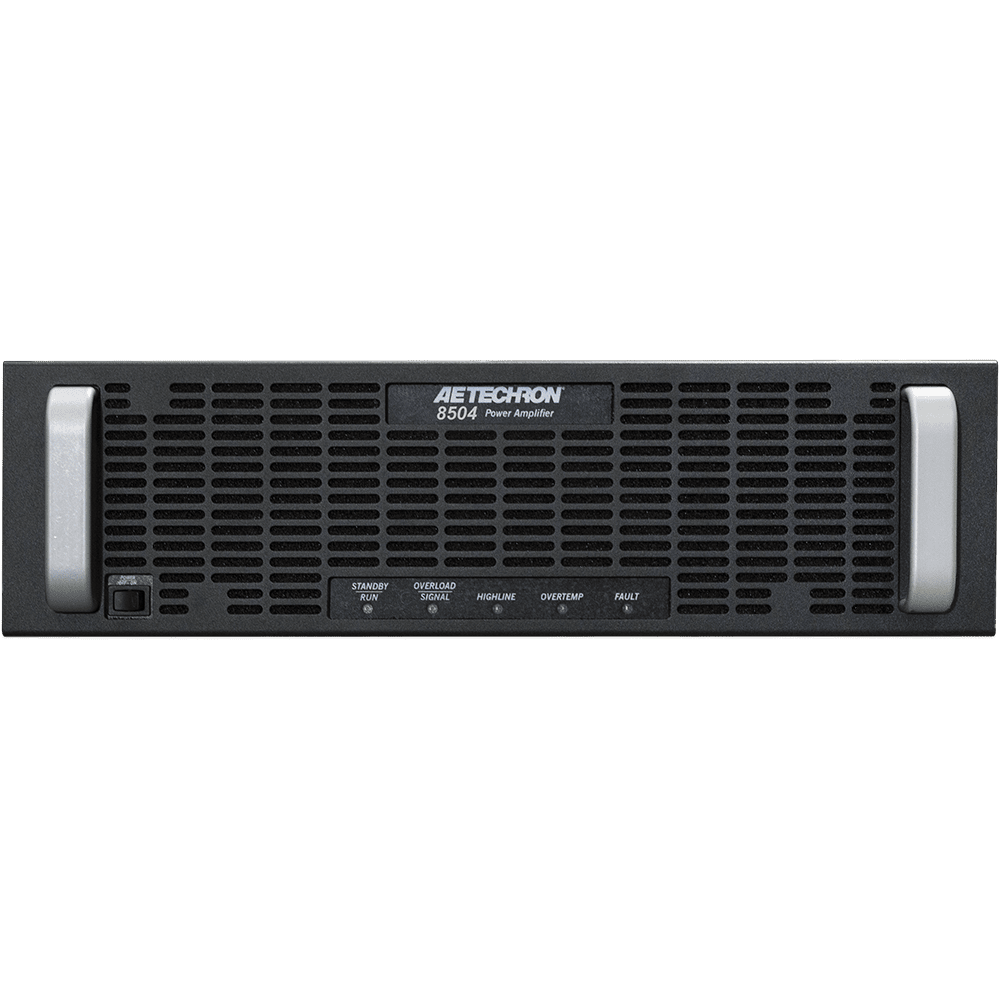

8504
DC-50kHz Switch-Mode Amplifier
8504
4 kW (up to 100 kVA), up to 400A continuous, single-phase
- Bandwidth: DC to 50 kHz
- Voltage: 0 to 260 VRMS; 0 to 400 VDC
- Slew rate: Up to 60 V/µs
- Current: Up to 80 ARMS*
- Distortion: <0.2%
- Power: 4 kW*
- Power levels up to 5X rated power when driving reactive loads
- High power efficiency and density
*Models available with output power from 4 kW to 24 kW (capable of up to 100 kVA).
OVERVIEW
The 8504 excels when it comes to driving reactive loads. As frequencies increase, the effective impedance of the load becomes a much larger part of the total load to be driven (especially with inductive loads like coils). However, when driving reactive loads, the 8504 is capable of receiving, reprocessing and returning to the load up to 5X its rated power. The result is a bench top system capable of 10 kVA+ output while drawing less than 4 kW of AC mains power.

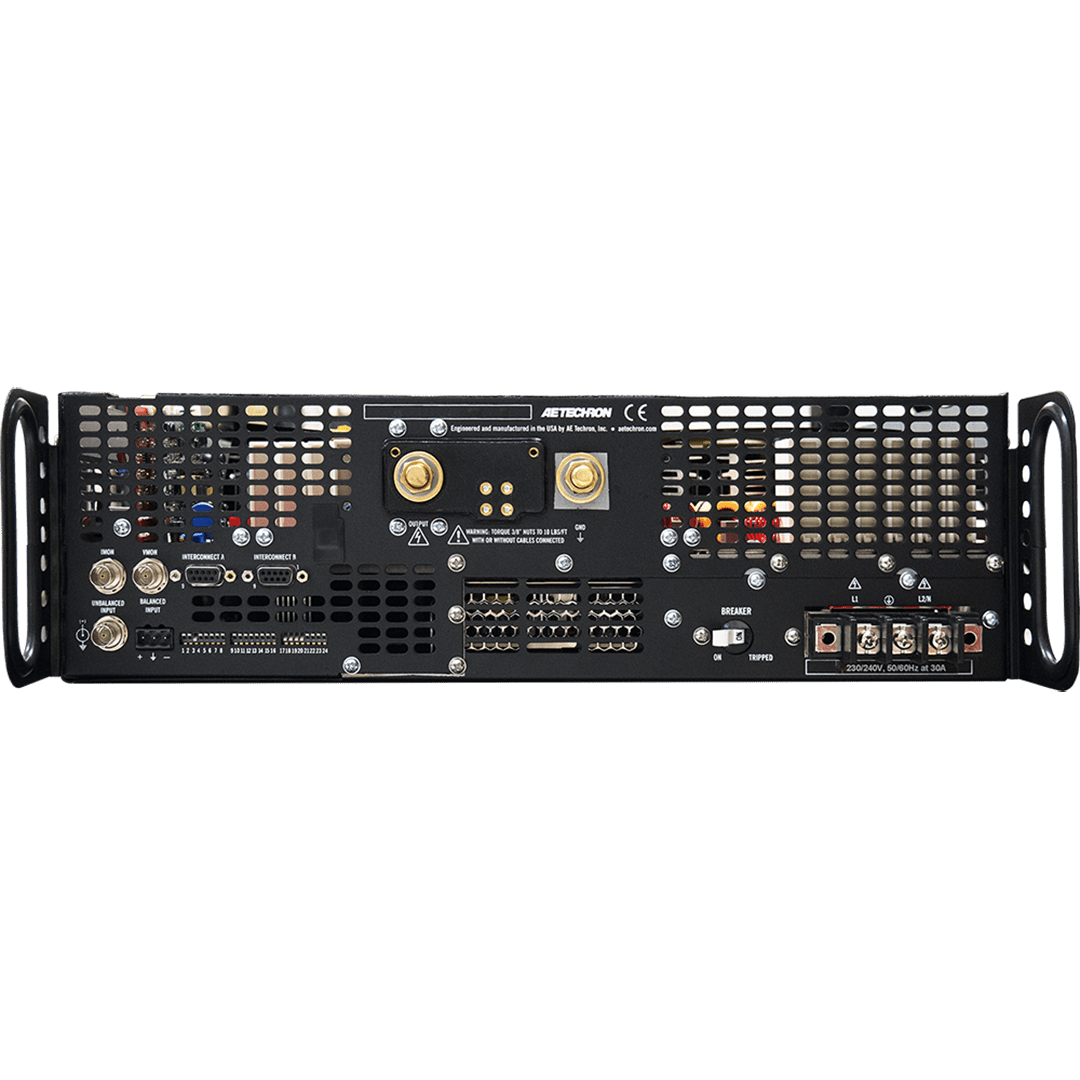

Configurable: A key to everyday product usability is quick and easy product (re)configuration. The 8500 Series provides all key configuration controls on the back panel of the unit. Configuration options available include:
- GAIN: Fixed or variable gain (0 to 40)
- CURRENT LIMIT: From 5% to rated limit (to protect fragile DUTs or where specified in the Standard)
- DC CONTROL: DC enabled or DC blocked and DC Servo (for driving transformer-coupled loads or coils)
- INPUT: Balanced and/or unbalanced
- MODE: Voltage source or current source
- OUTPUT IMPEDANCE: Variable from 0 to 1 ohm (Voltage mode)
- SENSE: Correction to voltage drops to the load
OUTPUT CHART
Output
CONTINUOUS AC OUTPUT CURRENT | CONTINUOUS DC OUTPUT CURRENT* | ||||||||||||
VOLTS RMS |
8504 | 8508 | 8512 | 8516 | 8520 | 8524 | VOLTS DC |
8504 | 8508 | 8512 | 8516 | 8520 | 8524 |
60 | 60 | 120 | 180 | 240 | 300 | 360 | 13.5 | 80 | 160 | 240 | 320 | 400 | 480 |
120 | 32 | 64 | 96 | 128 | 160 | 192 | 24 | 80 | 160 | 240 | 320 | 400 | 480 |
230 | 10 | 20 | 30 | 40 | 50 | 60 | 48 | 75 | 150 | 225 | 300 | 375 | 425 |
Note: 8504 power ratings shown are for unit configured for 240VAC. At output voltages above 90VAC, units configured for 120VAC mains input may be breaker limited. Contact AE Techron for 120VAC performance ratings. Performance data is for a purely resistive load; performance will be improved into loads that are partially or completely reactive.
PERFORMANCE
SPECIFICATIONS
Performance Specifications
- Operating Modes: AC, DC and AC + DC
- Frequency, AC Mode Output (-3 dB): DC – 50 kHz
- Max Voltage Ranges (no load):
- AC: 0 – 260 VRMS
- AC + DC: 0 – ±400 VP
- Max Continuous Output Current: 80A RMS
- Surge Rating: 2X power at up to 400Vp or 150A
- Apparent Power Rating: Up to 5X continuous power rating at up to 400 Vp or 150A
- Supply Voltage: Single-phase, 208V ±10% 30A, 50/60 Hz, 230/240V ±10%, 30A version available
- Load Regulation (full scale): <0.025%, DC to 100 Hz; <0.05%, 10 Hz to 10 kHz
- Line Regulation (full scale): <0.1% for 10% line change
- External Sense: Voltage-drop compensation sense line
- Harmonic Distortion (80 kHz, low-passed): Less than 0.3% from 10 Hz to 30 kHz; 0.5% up to 50 kHz
- Harmonic Distortion (30 kHz, low-passed): Less than 0.1% from 10 Hz to 50 kHz
- DC Offset: <10 mV
- Distortion: <0.2%
- Voltage Slew Rate: Load dependent; up to 60V per µs, typically 10 µs to 30 µs for 10% to 90% of full-scale change depending on load and power
- Efficiency: 85%, typical
- Power Factor: .72, typical
- Source Impedance: 3 mΩ + 3 µH
- Cooling: Internal forced-air fans
- Protection: Over/under voltage, over current, over temperature
- Input, Signal In:
- Unbalanced: BNC connector
- Balanced: Terminal strip
- Output: 3/8-inch high-current post connectors
Operating Environment
- Temperature: 5 °C to 50 °C (41 °F to 122 °F);
- Maximum output power derated above 30 °C (86 °F)
- Humidity: Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40 °C
- Altitude: 3000 m Maximum
- Environment: Indoor Use Only, Pollution degree 2
- Equipment Class: Group 1 Class A
- Transient Overvoltage: Overvoltage Category II
- Dimensions (HxWxD): 5.25 x 19.0 x 25.26 in (13.34 x 48.26 x 64.16 cm)
- Weight (approx): 84 lbs. (38.1 kg)
