9100 Series
DC – 250 kHz, 200 Vp Switch-Mode Amplifiers
9100 Series
5 kW, up to 540A continuous, single-phase
AE Techron’s 9100 Series amplifiers are 200Vp, DC-to-250 kHz capable amplifiers that offer a unique combination of switch-mode efficiency and linear-amplifier-like fidelity in a single, compact package. They can drive virtually any type of load without a reduction in rated power, with low distortion and low DC drift. They are also fast enough to meet 7µs surge and dropout requirements.
Key Performance Capabilities:
- Bandwidth: DC to 250 kHz
- Minimum Drop/Rise Time: 7µs
- Slew Rate: Up to 150 V/µs
- Max Voltage: 200 Vp
- Max Current: 35A RMS to 540A RMS
- Distortion: <0.1% at 1 kHz below clip
- Max Long-Term Power: 5 kW to 30 kW*
- Typical Output Ripple: 0.6V RMS
*9105 output is 4.2 kW from 230V or 240V sources; output for 9110 and 9115 models is 5 kW.
OVERVIEW
The 9100 series is power-efficient, with a typical efficiency over 90% at full power. It is a powerful and flexible partner when the environment is difficult or existing AC Mains options are limited.
The single-unit models can be powered from any normal single-phase AC mains voltage (100V AC — 250V AC). The cabinet-based Power Systems can be powered from a variety of three-phase voltages from 200VAC to 415VAC*.
This combination of features makes the 9100 series an ideal solution for a wide range of high-current, low-voltage applications that require both wide bandwidth and the ability to drive reactive or widely varying load impedances.
- Stable when driving highly capacitive loads
- Four-quadrant operation
- User-selectable gain
- User-selectable current limit to protect fragile DUTs or where specified in the Standard
- DC enabled or DC blocked and DC Servo (for driving transformer-coupled loads or coils)
- Balanced and/or unbalanced input
- Operate as a voltage-controlled voltage source or voltage-controlled current source

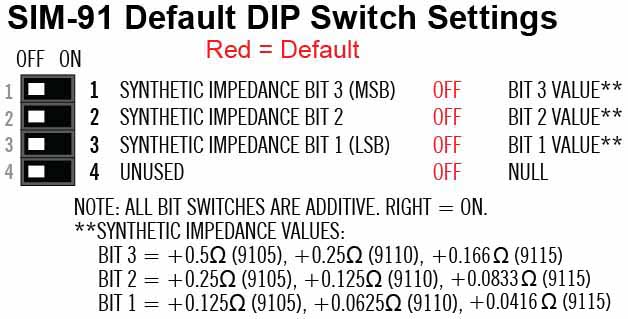

- Variable output impedance from 0 to 1 ohm (Voltage mode)
* Three-phase voltages above 240VAC will require a 5-wire service.
OUTPUT CHART
Output
| Â | CONTINUOUS OUTPUT CURRENT | |||||||
| Â | 9105 | 9110 | 9115 | 9130 | 9145 | 9160 | 9175 | 9190 |
| 13.5 VDC | 35A | 60A | 90A | 180A | 270A | 360A | 450A | 540A |
| 24 VDC | 35A | 60A | 90A | 180A | 270A | 360A | 450A | 540A |
| 48 VDC | 34A | 60A | 90A | 180A | 270A | 360A | 450A | 540A |
| 30 VAC | 35A | 70A | 90A | 180A | 270A | 360A | 450A | 540A |
| 60 VAC | 35A | 70A | 80A | 160A | 240A | 320A | 400A | 480A |
| 120 VAC | 35A | 37A | 37A | 74A | 100A | 137A | 174A | 200A |
Note: Performance data is for a purely resistive load; performance will be improved into loads that are partially or completely reactive.
PERFORMANCE

SPECIFICATIONS
Performance Specifications (all models)
- Operating Modes:Â AC, DC, and AC + DC
- Frequency, AC Mode Output (-3 dB): DC – 250 kHz
- Max Voltage Ranges (no load),
- AC: 0 – 140 VRMS
- AC + DC: 0 – ±200 VP
- Load Regulation (ref to full scale): <0.05%, DC to 100 Hz; <0.1%, 10 Hz to 10 kHz
- Line Regulation (full scale):Â 100V to 250V ACRMS
- Harmonic Distortion,
- 80 kHz, Low-passed: Less than 0.3% from 10 Hz to 30 kHz; 0.5% up to 50 kHz
- 30 kHz, Low-passed: Less than 0.1% from 10 Hz to 50 kHz
- DC Offset:Â <2 mV
- Distortion:Â <1.0%
- THD:Â .02% at 1kHz
- Voltage Slew Rate, 8Ω: 150V per µs
- Voltage Ripple:Â 250mV @ 250kHz
- Efficiency:Â 85%, typical
- Power Factor:Â .98, typical
- Source Impedance: 5 mΩ + 6 µH
- Cooling:Â Internal forced-air fans
- Protection:Â Over/under voltage, over current, over temperature
- Input, Signal In:Â BNC connector (unbalanced)
- Output:Â High-current barrier strip
Operating Environment
- Temperature: 5 °C to 50 °C (41 °F to 122 °F);
Maximum output power de-rated above 30 °C (86 °F) - Humidity: Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40 °C
- Altitude: 3000 m Maximum
- Environment: Indoor Use Only, Pollution degree 2
- Equipment Class:Â Group 1 Class A
- Transient Overvoltage:Â Overvoltage Category II
MODEL COMPARISON
SINGLE UNIT MODELS

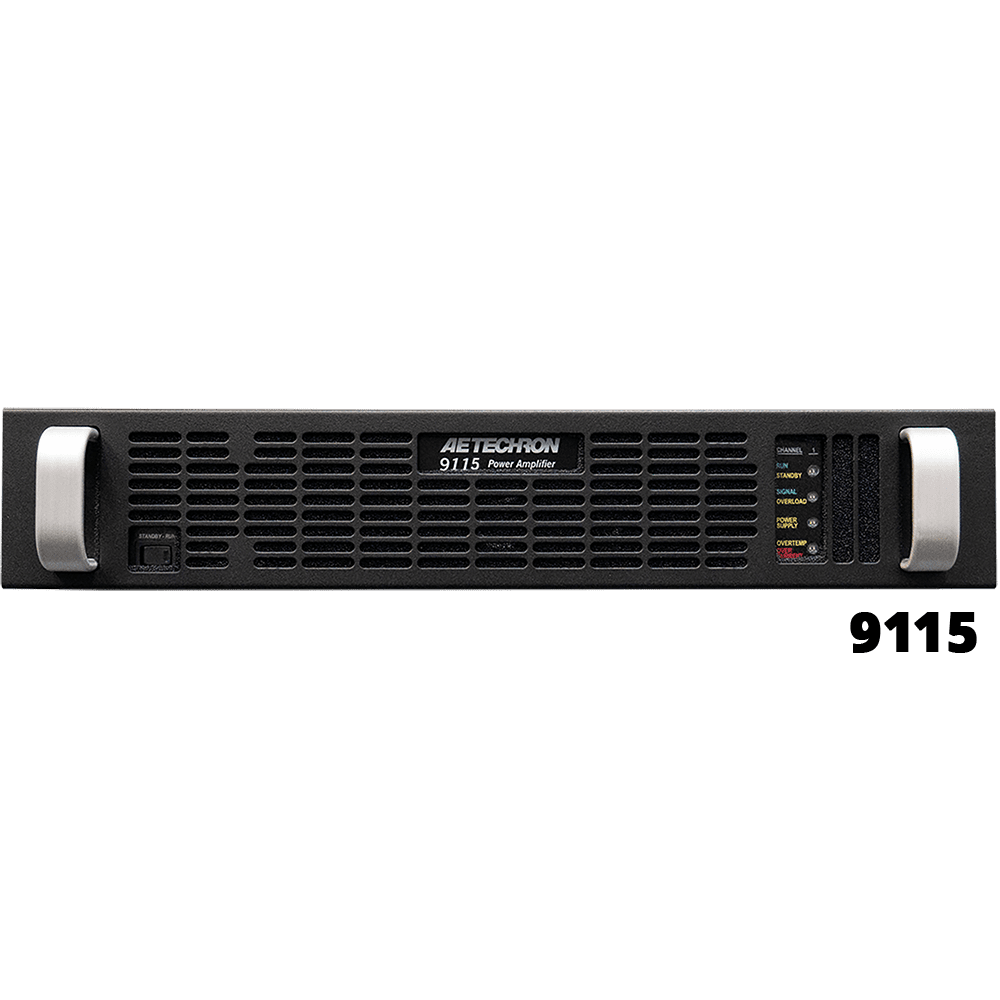

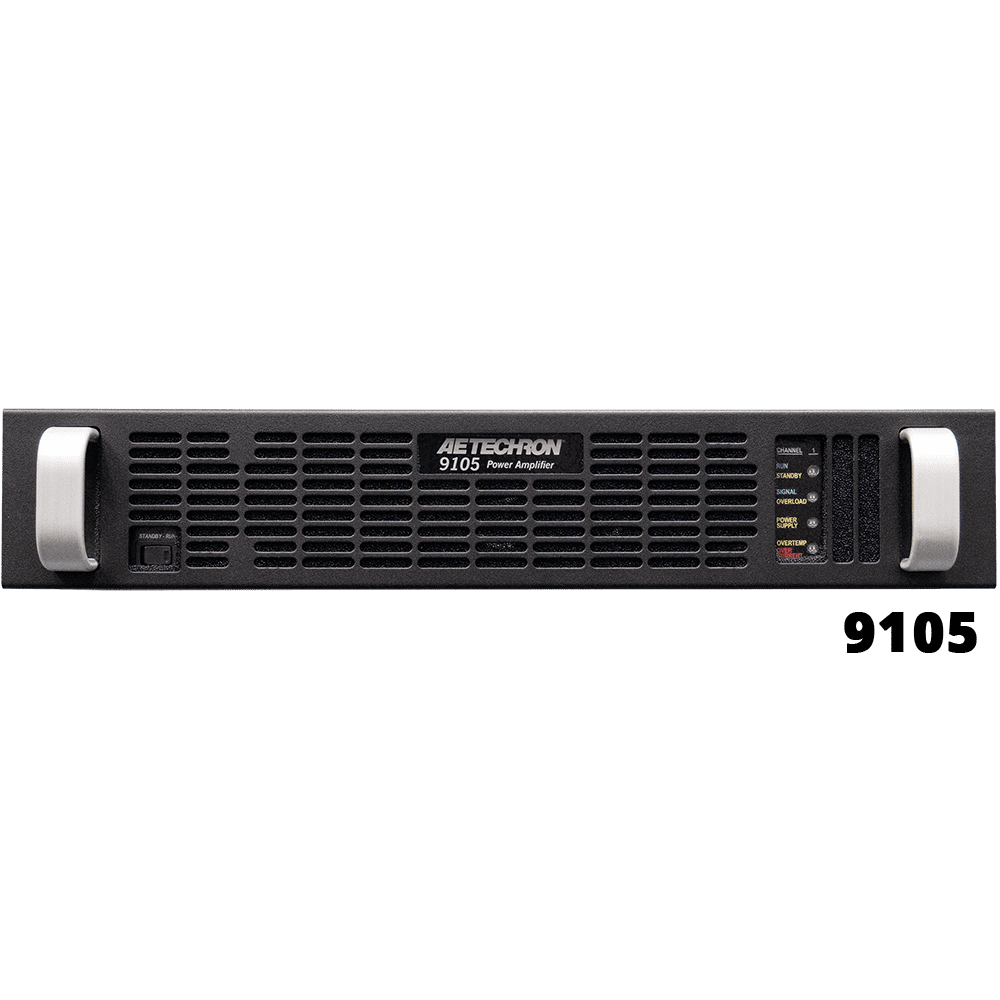

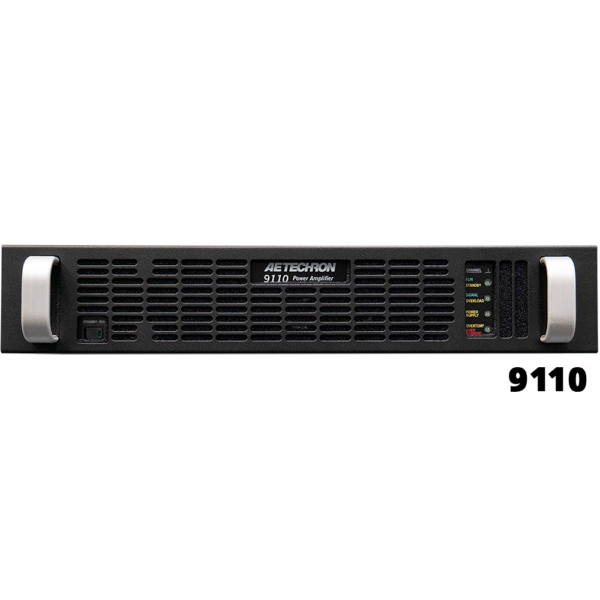

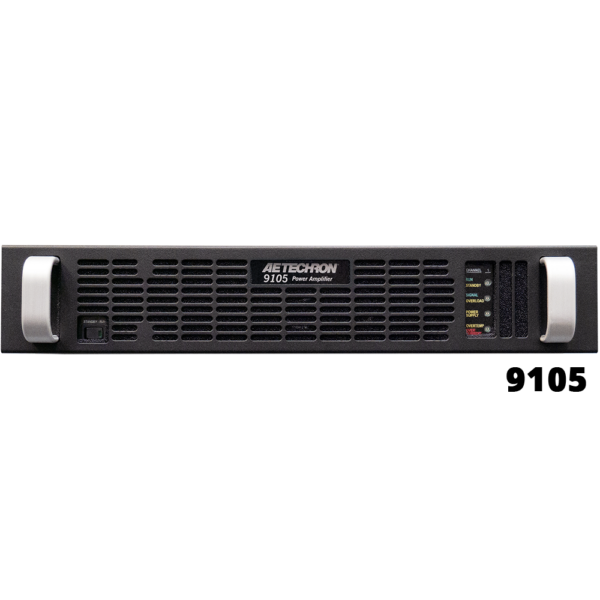

| Model | 9105 | 9110 | 9115 |
| Max Cont. Output Current | 35A RMS | 70A RMS | 90A RMS |
| Power | 2 kW from 20A, 120VAC, 4.2 kW from 30A, 230/240VAC |
5 kW | 5 kW |
| Supply Voltage (Universal power supply with PFC) |
Single-phase, 100V to 240VAC ±10%, 30A, 50/60 Hz | Single-phase, 100V to 240VAC ±10%, 30A, 50/60 Hz | Single-phase, 100V to 240VAC ±10%, 30A, 50/60 Hz |
| Dimensions (HxWxD) | 3.47×17.3×22.8 in 8.81×43.94×57.91 cm |
3.47×17.3×22.8 in 8.81×43.94×57.91 cm |
3.47×17.3×22.8 in 8.81×43.94×57.91 cm |
| Weight (approx) | 40 lbs (18.14 kg) | 45 lbs (20.41 kg) | 50 lbs (22.68 kg) |
| Model Product Pages | 9105 | 9110 | 9115 |
Â
POWER SYSTEM MODELS

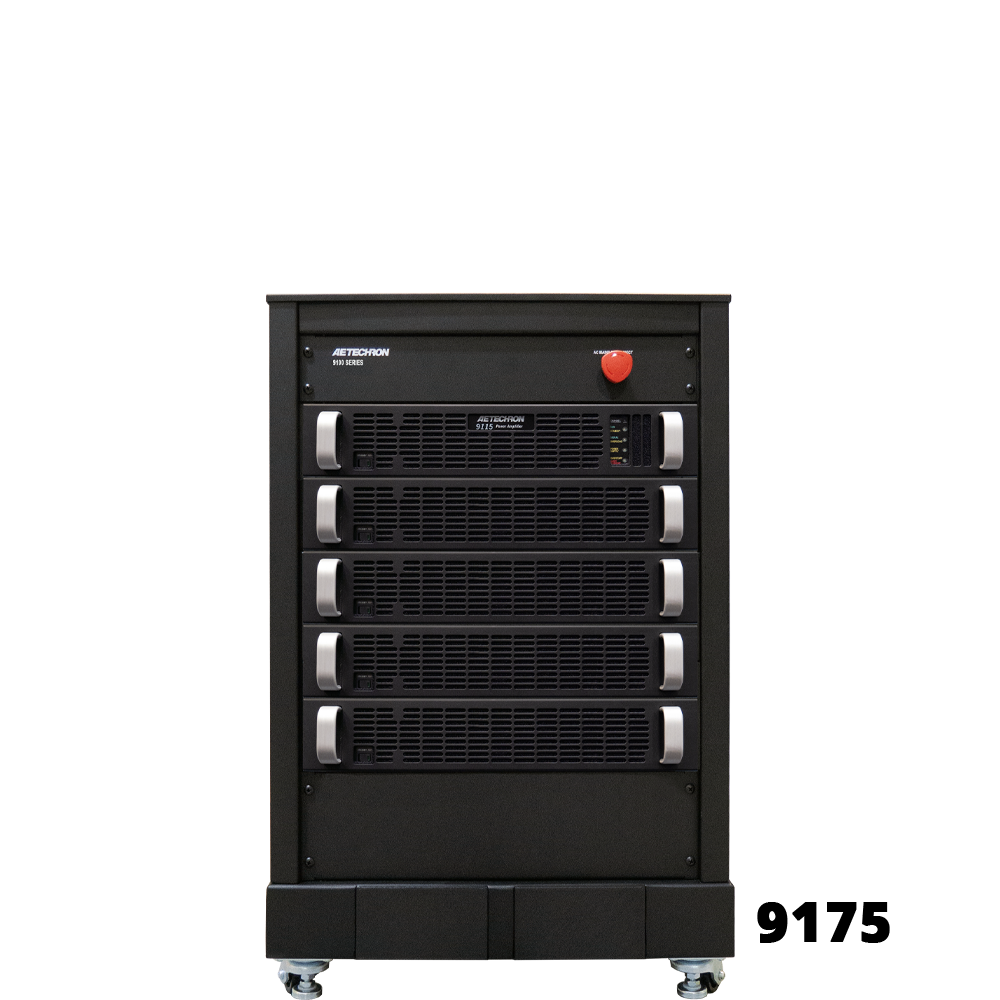

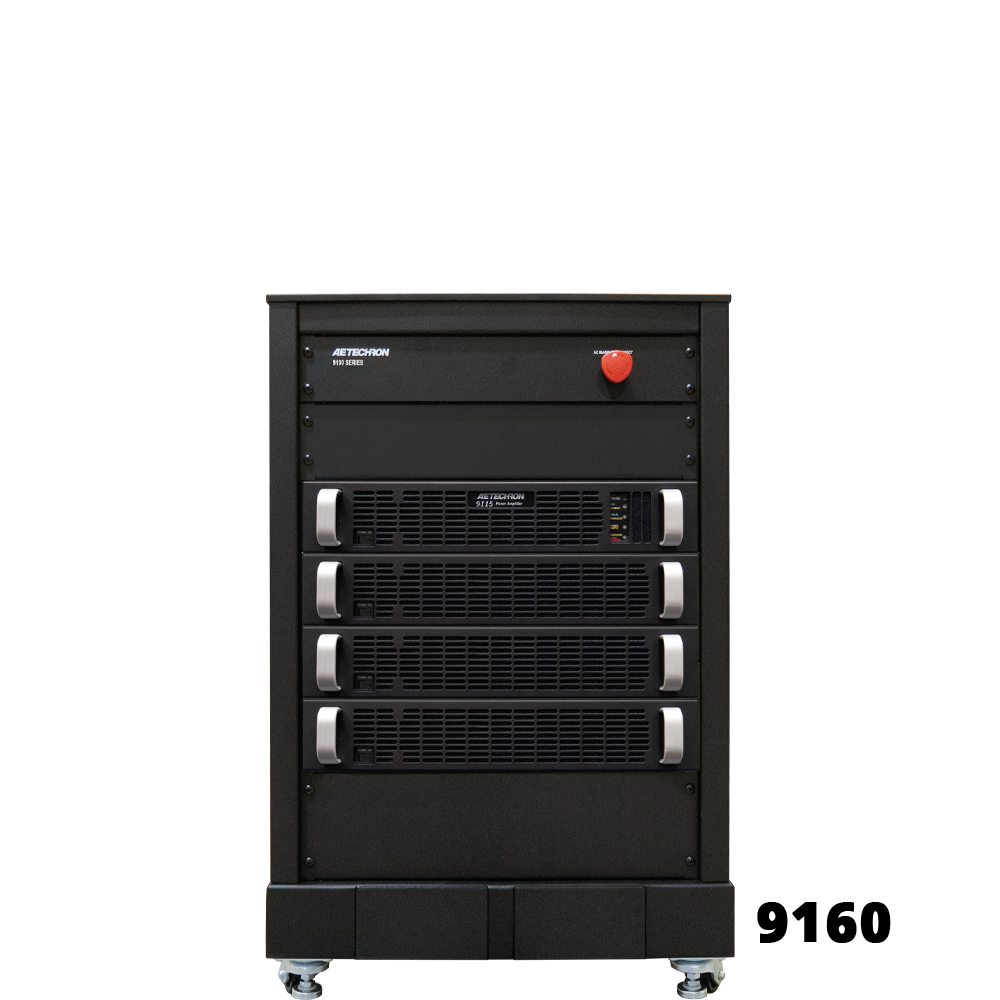

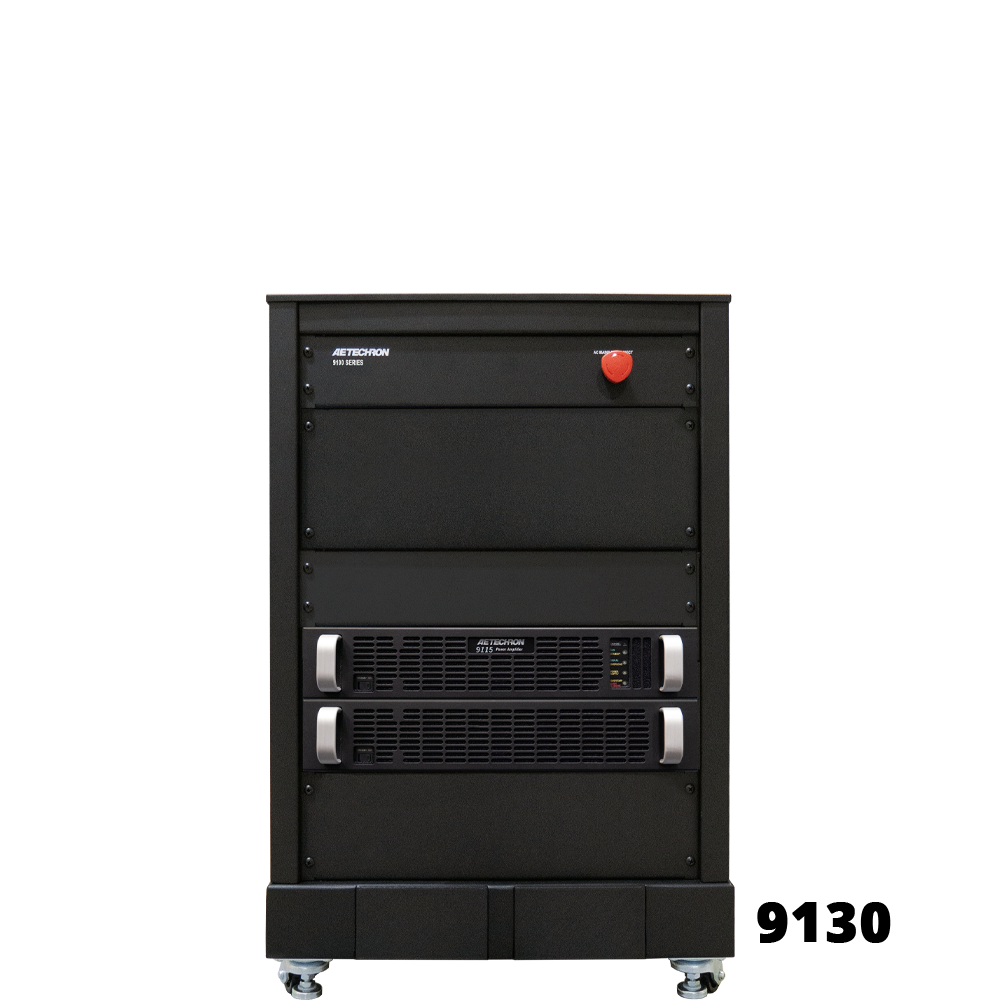

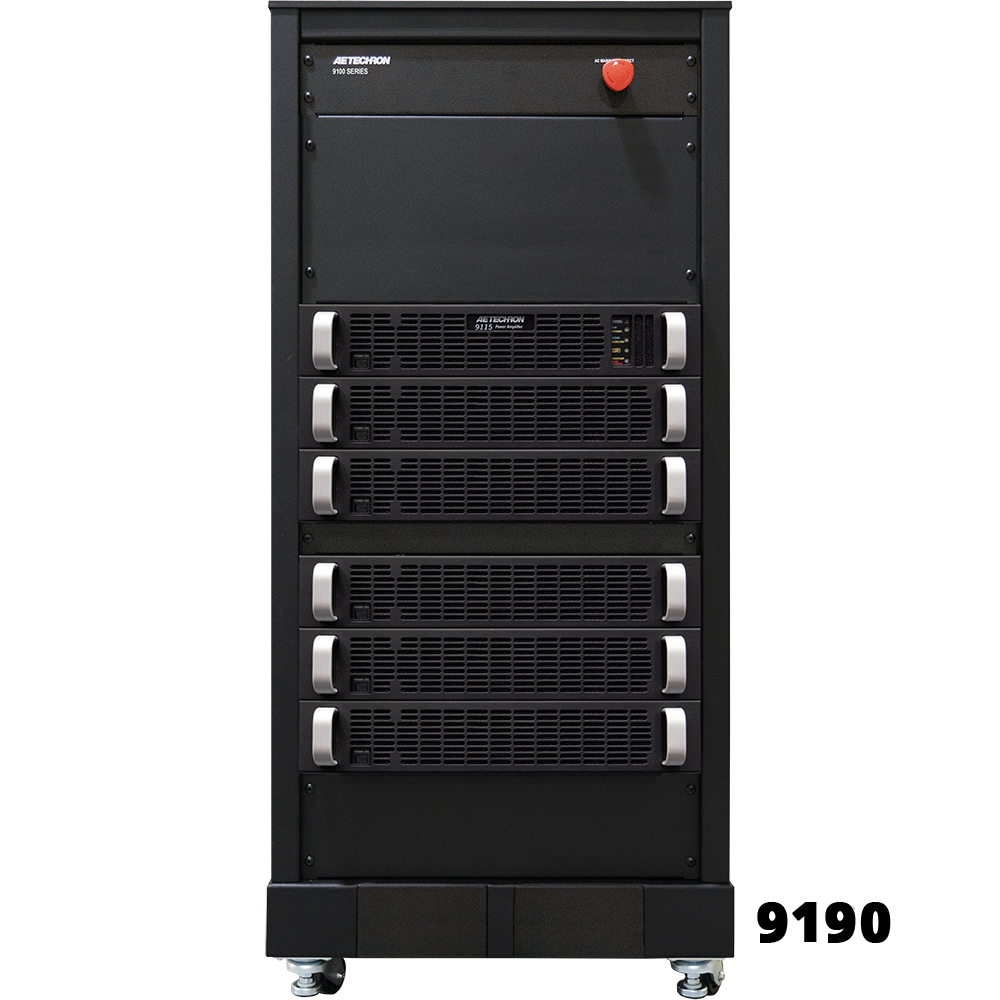

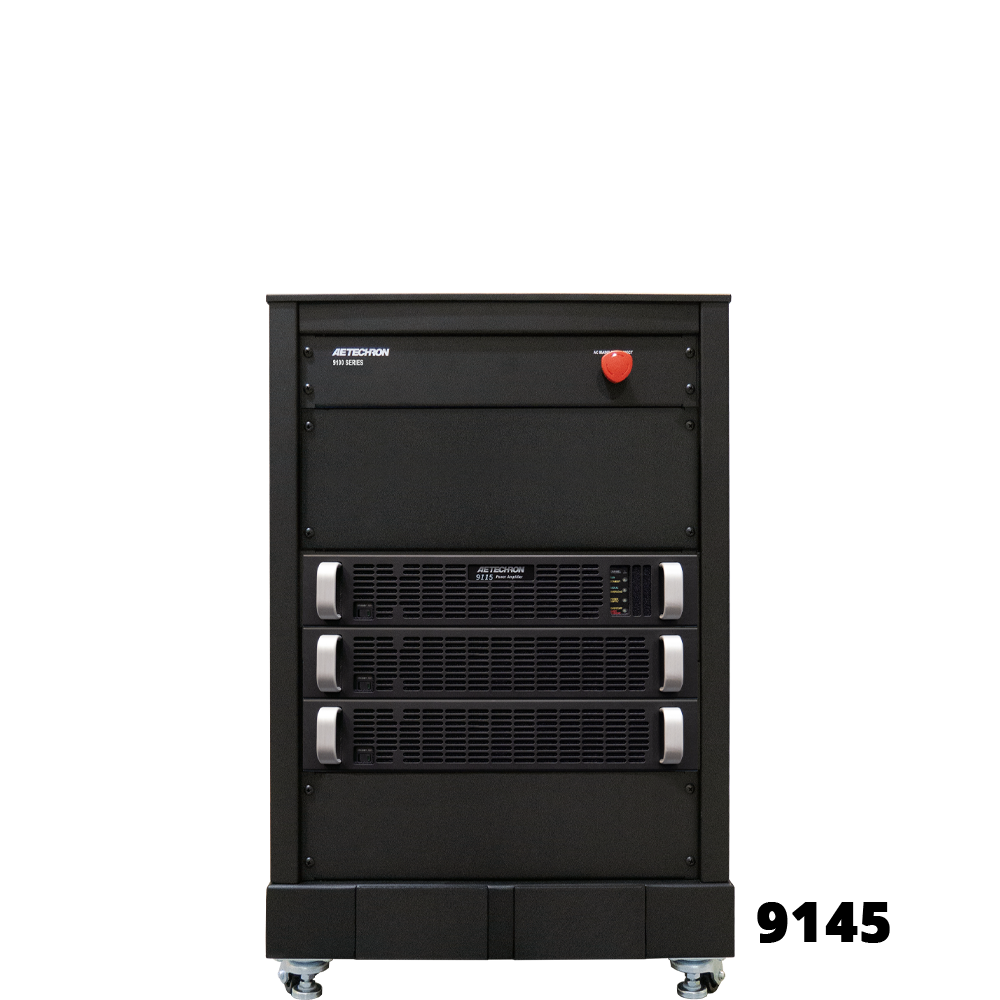

| Model | 9130 | 9145 | 9160 | 9175 | 9190 |
| Max Cont. Output Current | 180A RMS | 270A RMS | 360A RMS | 450A RMS | 540A RMS |
| Power | 10 kW | 15 kW | 20 kW | 25 kW | 30 kW |
| Supply Voltage (Universal power supply with PFC) |
3-phase, 200V to 415VAC ±10%, 30A, 50/60 Hz | 3-phase, 200V to 415VAC ±10%, 30A, 50/60 Hz | 3-phase, 200V to 415VAC ±10%, 60A, 50/60 Hz | 3-phase, 200V to 415VAC ±10%, 60A, 50/60 Hz | 3-phase, 200V to 415VAC ±10%, 60A, 50/60 Hz |
| Dimensions (HxWxD) | 35.05×22.56×31.56 in 89.03×57.3×80.16 cm |
35.05×22.56×31.56 in 89.03×57.3×80.16 cm |
35.05×22.56×31.56 in 89.03×57.3×80.16 cm |
35.05×22.56×31.56 in 89.03×57.3×80.16 cm |
45.8×22.56×31.56 in 116.33×57.3×80.16 cm |
| Weight (approx) | 222 lbs (10.7 kg) | 272 lbs (123.4 kg) | 322 lbs (146 kg) | 435 lbs (197.3 kg) | 485 lbs (220kg) |
| Model Product Pages | 9130 | 9145 | 9160 | 9175 | 9190 |
